Overview
Duplex: 50' × 18'. Meets or exceeds the CSA A277 standard and the National Building Code. Scalable for apartment complexes, townhouses, and urban infill sites.
From the brochure
Multi-Family Brochure, page 4
- Duplex
- 50' x 18'
- 2 Bedroom
- 1 Bathroom
- Walk-In-Closet
- Open Concept
- Separate Entrances
- Product line
- Multi Family & Infill
- Building standard
- Built to meet or exceed CSA A277 and the National Building Code

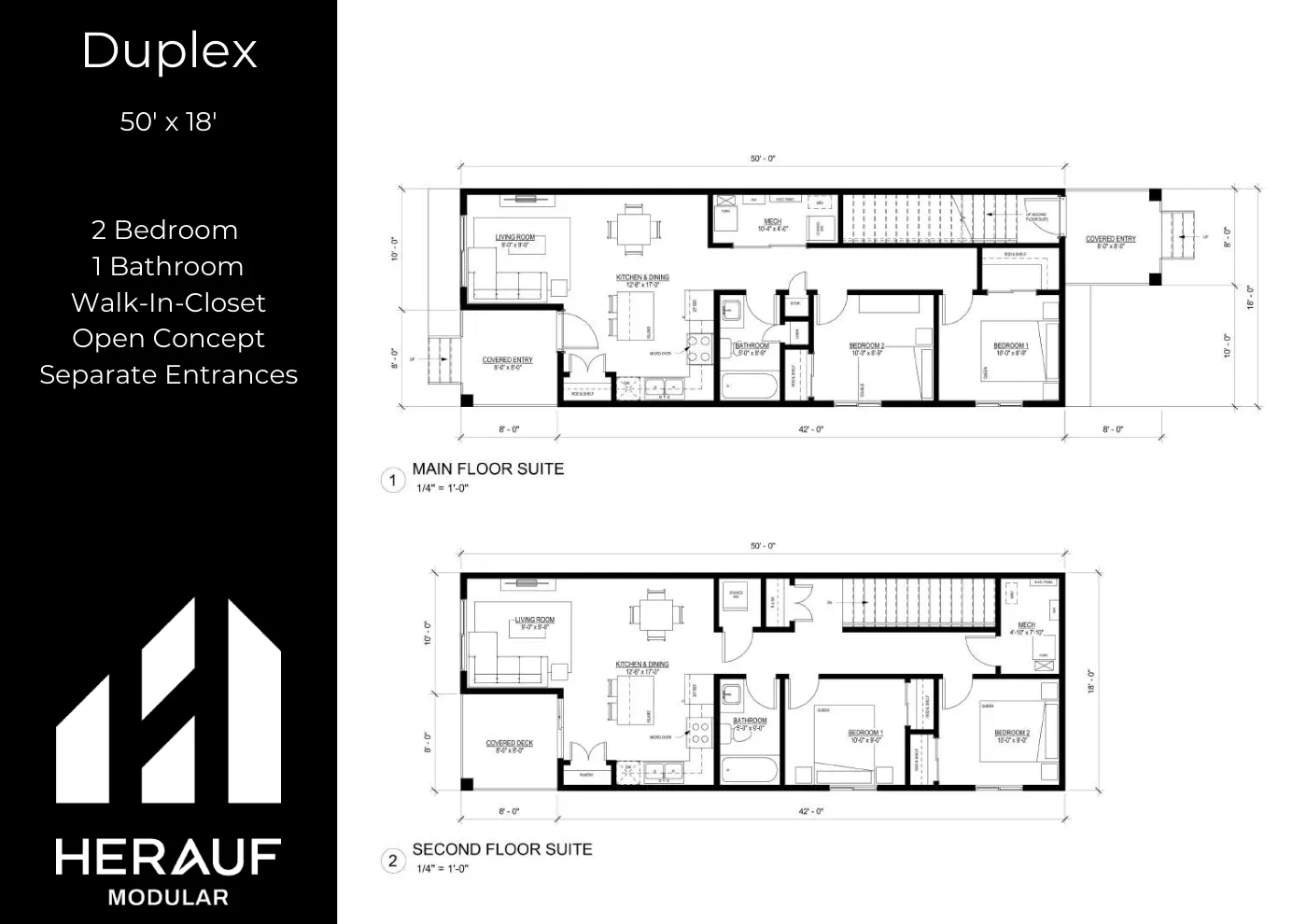

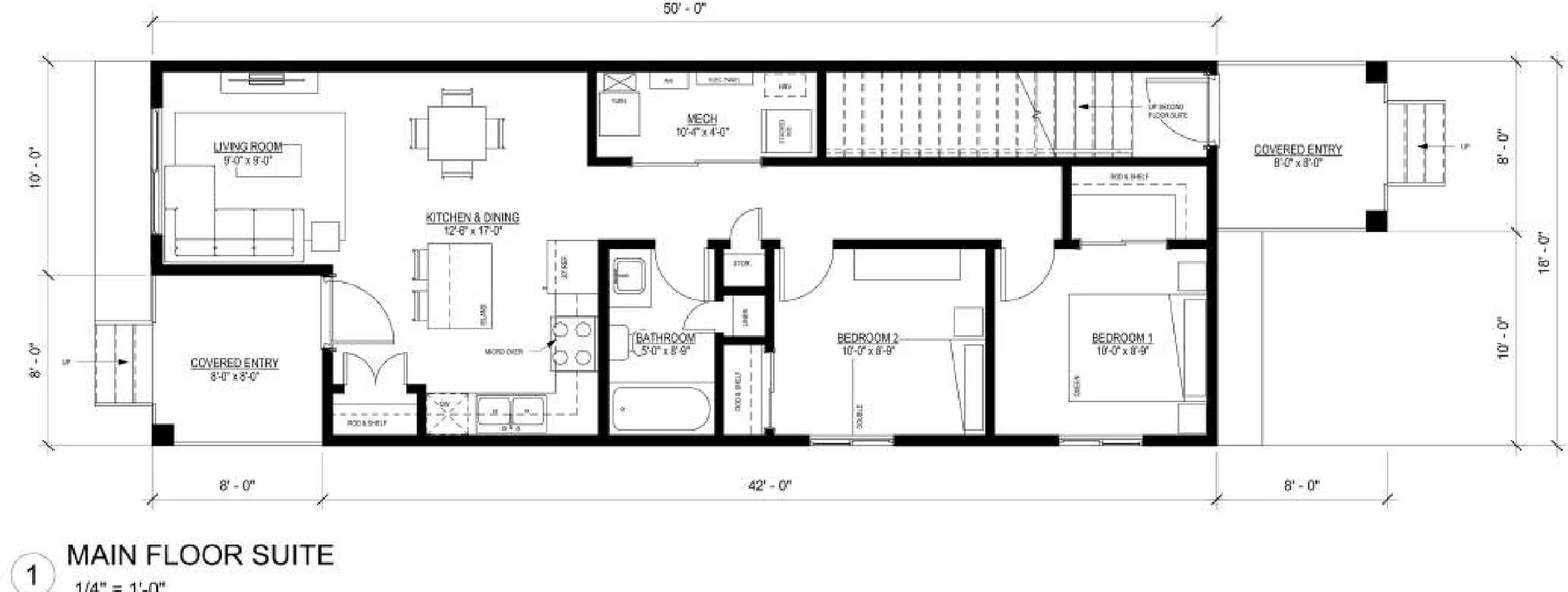

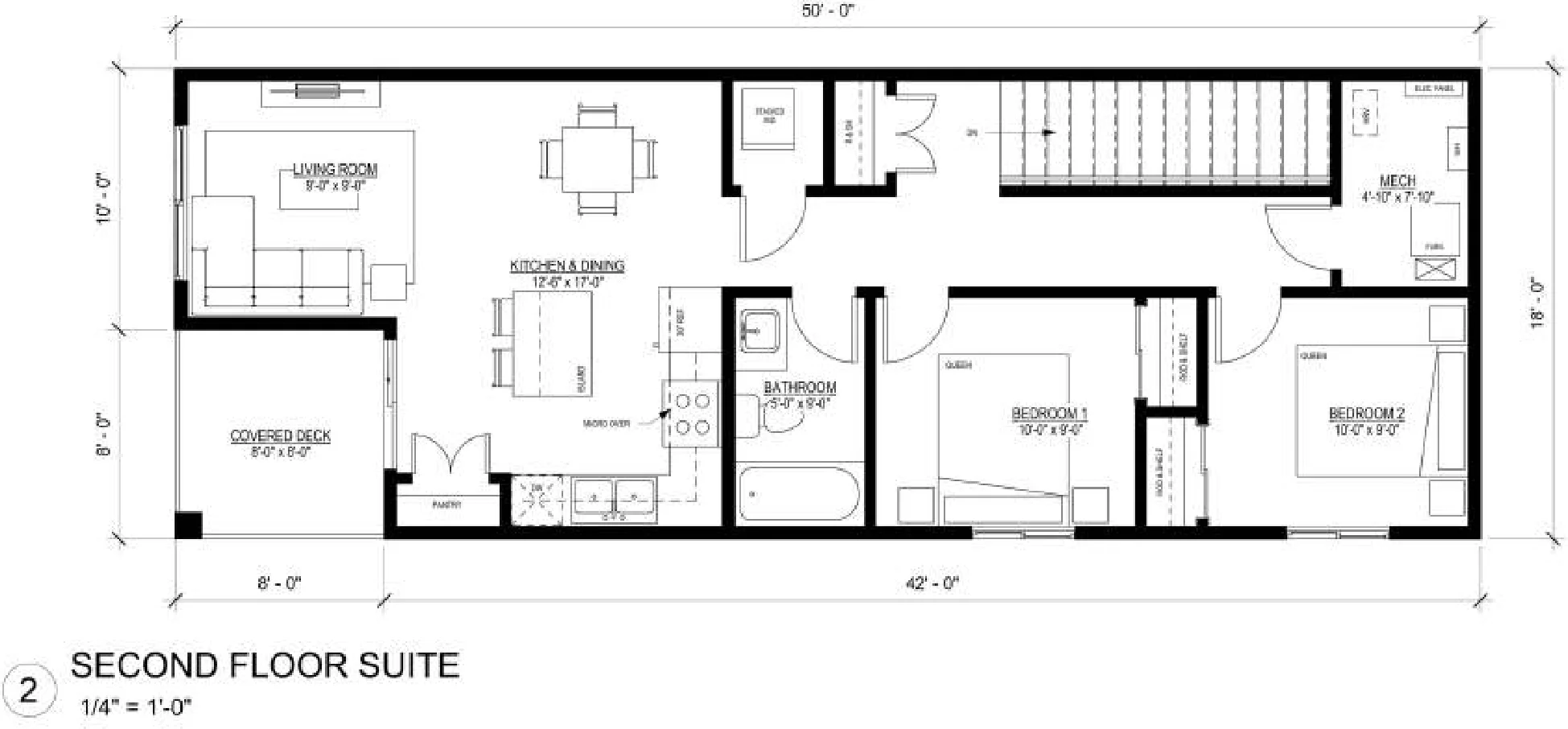

Floor plan
Page 4 of the Multi-Family Brochure. Dimensions and layouts as printed; ask us about customization.
What’s included
Brochure specifications
Multi-Family Brochure, page 20. As printed in the brochure.
Superior Construction
- 1/2” plywood underbelly
- Underbelly metal floor cap
- Engineered roof trusses @ 24” OC • 2”x 4” Interior walls @ 24”OC
- 2”x 6” exterior walls @ 16” OC
- 2” x 10” floor Joists @16” OC
- 3/4’’ tongue & groove subfloor
- 7/16” wall & roof sheathing
- Insulation R - Value Floor R-32
- Insulation R - Value Walls R-24
- Insulation R - Value Roof R-60
- 6ml vapour barrier (CGSB)
Mechanical & Plumbing
- 30 or 40 Imperial gallon electric water heater (pending size of unit)
- Electric ductless A/C or natural gas forced air furnace (either one is optional)
- HRV (Heat Recovery Ventilator) & exhaust system
- Moen single-lever faucets c/w pressure-balanced shower valve
- 1-piece tub/shower c/w curved rod (optional) 1 piece 4’ shower c/w glass sliding doors
- Low-flow toilet
- Dishwasher hookup
- Washer and Dryer Hookup
Electrical
- 100 Amp Electrical Panel (Standard) Electric fan forced wall heaters
- 2Exterior GFI receptacles
- 1.5’’ Conduit Raceway to electrical panel for future electrical service
- GFCI-protected receptacles in bathroom
- GFCI-protected receptacles in kitchen
- AFCI-protected receptacle
- 1 Heat trace receptacle
- Smoke/Carbon Monoxide alarms Interior LED pot lights
- Exterior LED lights
Maintenance Free Exteriors
- Vinyl Siding (metal siding optional)
- Tyvek House wrap
- Pre-finished 12” Eaves
- Pre-finished 6” fascia
- 36” steel insulated ext. door c/w PVC jamb - Standard White
- 5’’ Eavestrough
- Architectural Asphalt Shingles (metal standing seam roof optional)
- PVC Triple Pane (low E) c/w venting sliders & PVC jambs - Standard White
Interior Decor
- Custom Cabinets
- Superior Vinyl Plank Flooring
- Bathroom vanity & mirror
- Weiser brushed nickel door hardware
- Berkley Contemporary interior doors
- Interior & Exterior client selections
Warranty & Certifications
- 1 Year comprehensive
- 2 Year Mechanical
- 5 Year Envelope Seal
- Apartment complexes
- Townhouse configurations
- Urban infill ready
- Fast delivery
- Meets or exceeds CSA A277
Make the Duplex yours.
Custom builds typically deliver in roughly 16 weeks. Tell us about your site and we’ll prepare a quote, free.
Common questions about the Duplex
How much does the Duplex cost?
There's no fixed list price: cost depends on your finish level, site and foundation, and delivery distance. Herauf provides a free, no-obligation written quote for the Duplex tailored to your project, usually within one business day.
How long does the Duplex take to build and deliver?
Most Herauf builds are manufactured and delivered in roughly 16 weeks. The Duplex is built indoors to meet or exceed CSA A277 while your site work happens in parallel, so weather never stalls the schedule.
Can the Duplex be customized?
Yes. Exterior colours, cladding, and interior finishes can be tailored, and our team walks you through options when you request a quote. The floor plan and structure follow the published Multi-Family & Infill specification.
