Commercial modular
floor plans.

Offices, retail and food service

An office building, a salon, a coffee shop, two concession buildings, an EV charging building and a wellness centre, from the Commercial Brochure.

Sector page: Commercial modular buildings · Commercial Brochure (PDF)

Offices, retail and food service: floor plans with dimensions, area and rooms as printed

Plan	Length × width	Floor area	Rooms and features, as printed	Drawing

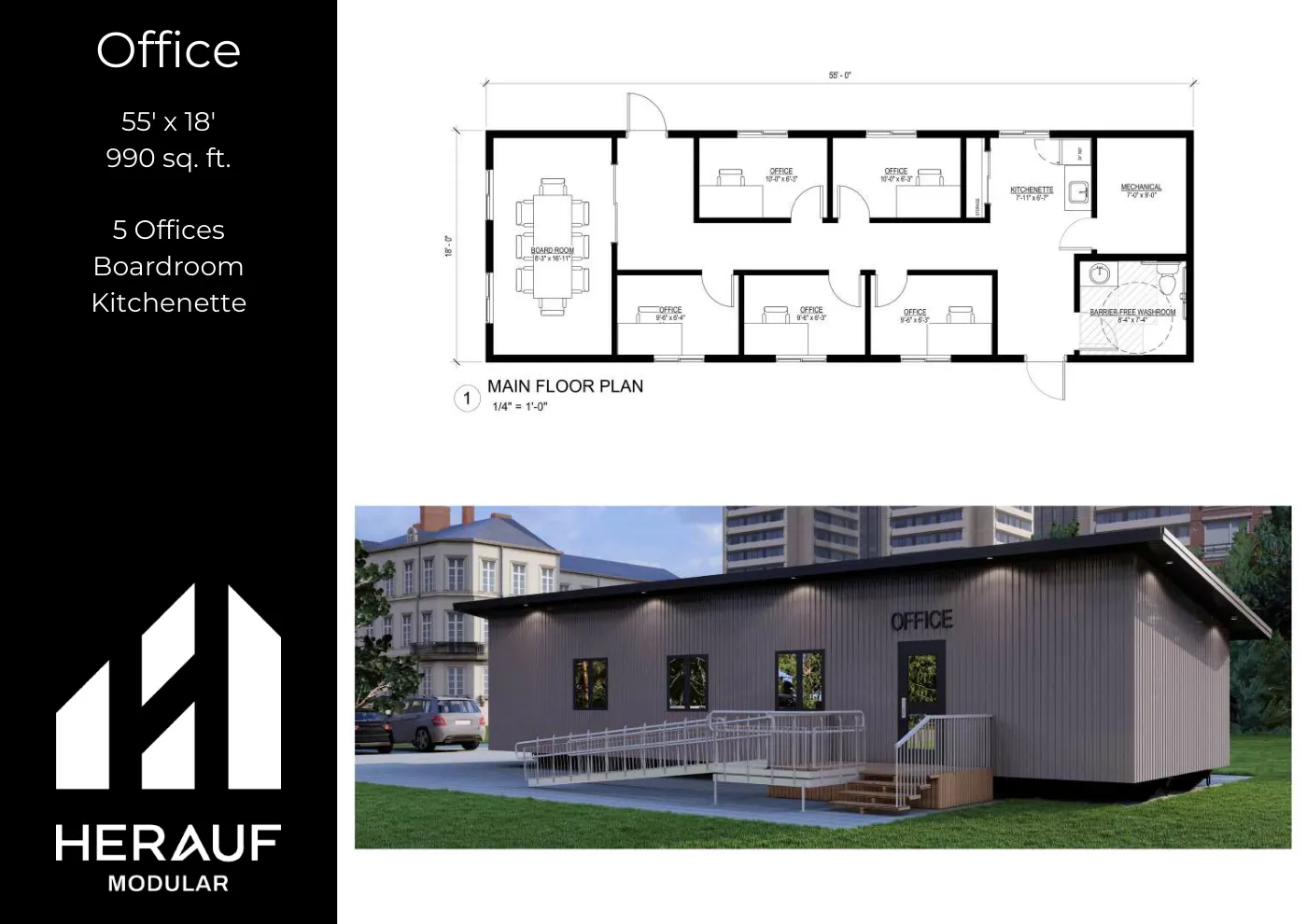

Office	Length × width55' × 18'	Floor area990 sq ft	Rooms and features, as printed 5 offices Boardroom Kitchenette On the drawing: Barrier-free washroom, Mechanical room	Brochure p. 4, Office (PDF)

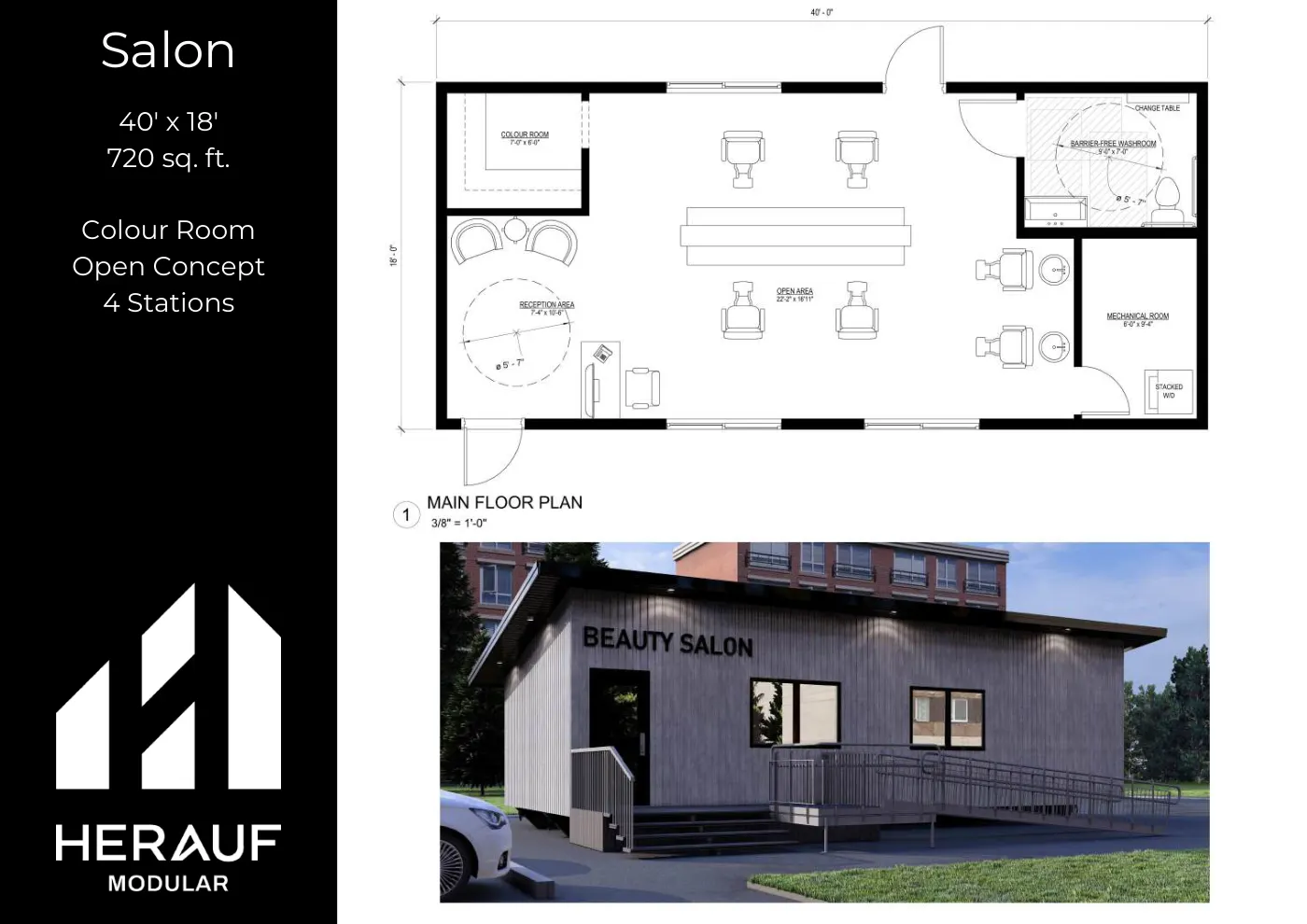

Salon	Length × width40' × 18'	Floor area720 sq ft	Rooms and features, as printed 4 stations Colour room Open concept	Brochure p. 6, Salon (PDF)

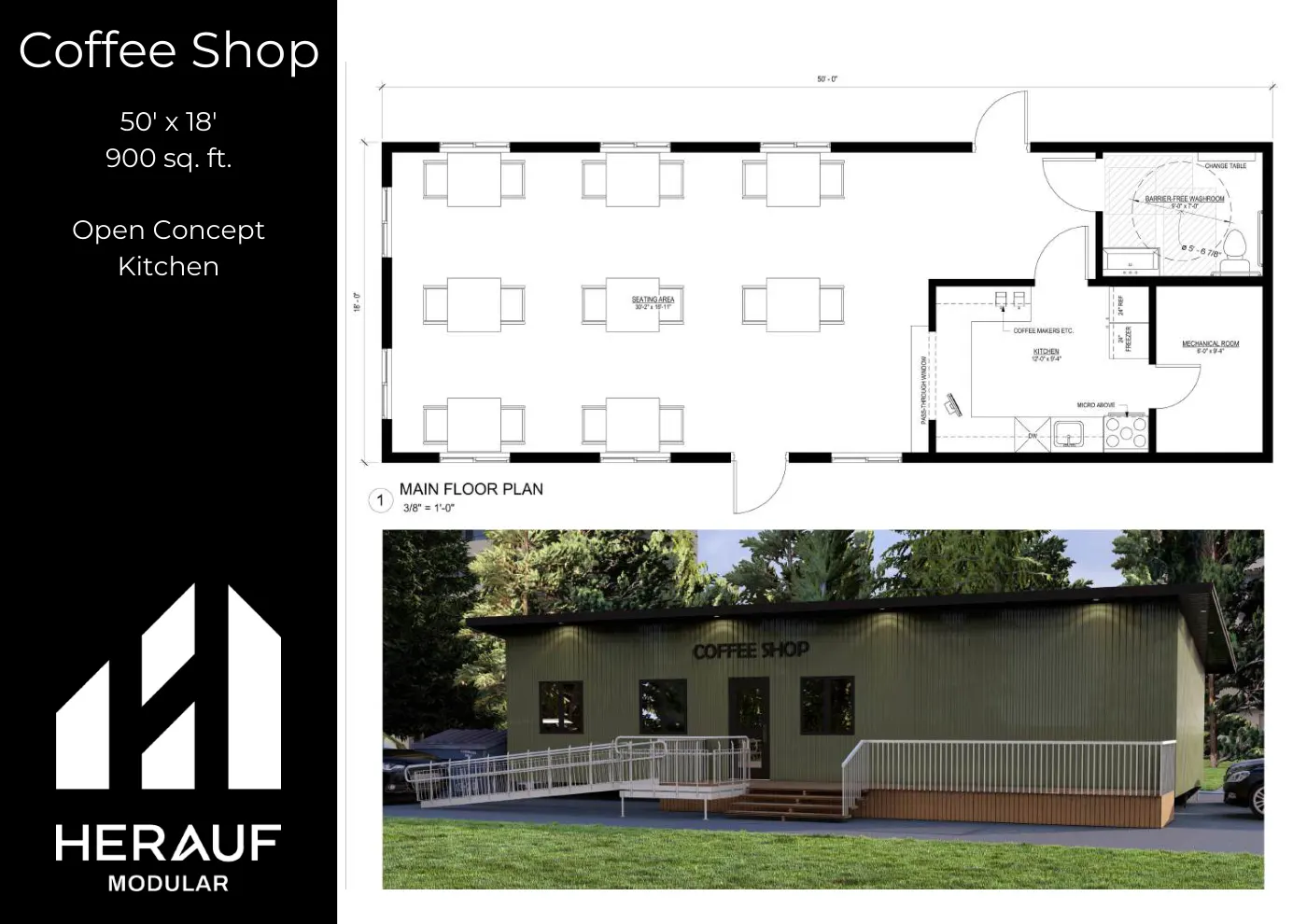

Coffee shop	Length × width50' × 18'	Floor area900 sq ft	Rooms and features, as printed Open concept Kitchen On the drawing: Seating area, Pass-through window, Barrier-free washroom, Mechanical room	Brochure p. 8, Coffee shop (PDF)

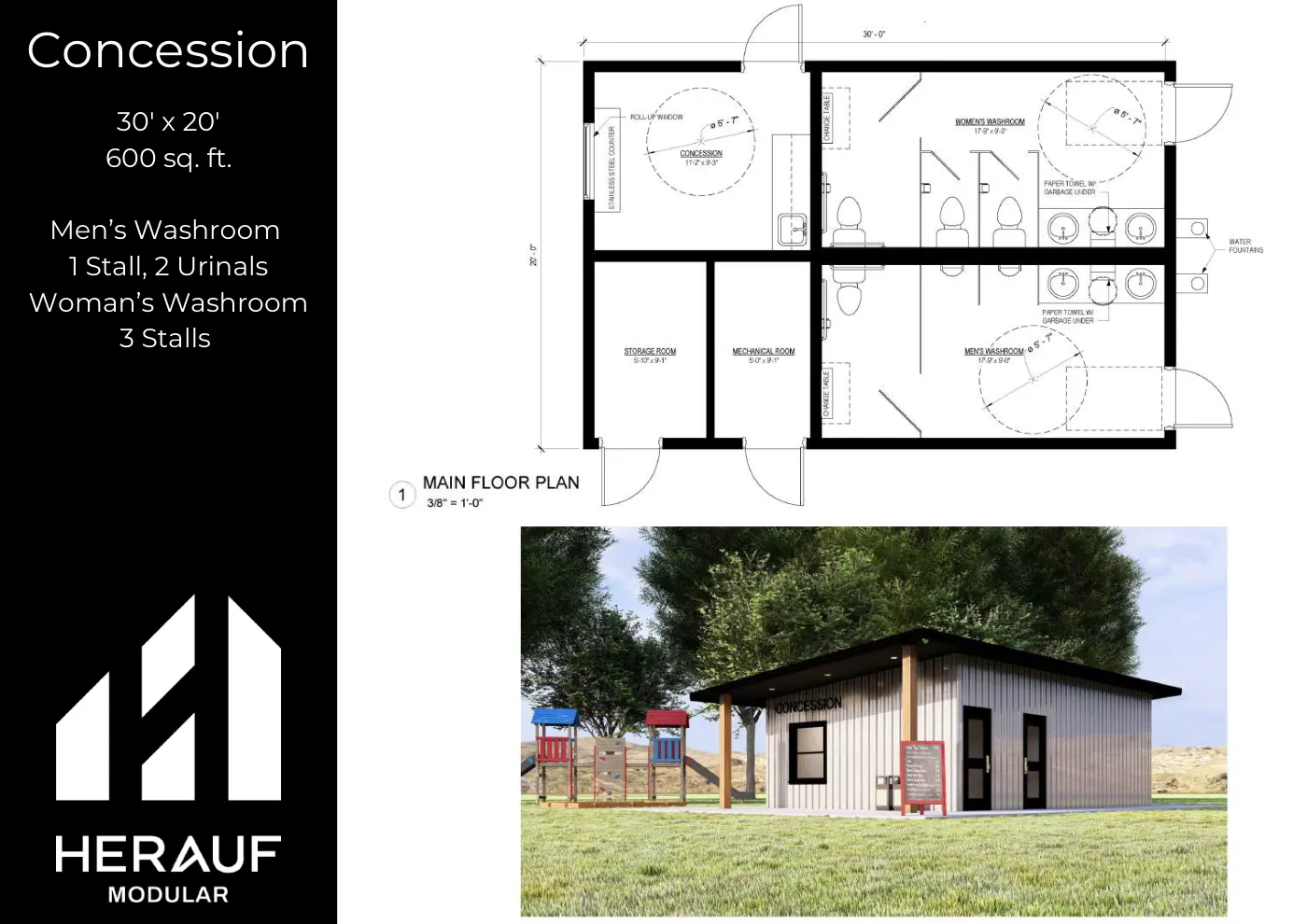

Concession, 30' × 20'	Length × width30' × 20'	Floor area600 sq ft	Rooms and features, as printed Men's washroom: 1 stall, 2 urinals Women's washroom: 3 stalls	Brochure p. 10, Concession, 30' × 20' (PDF)

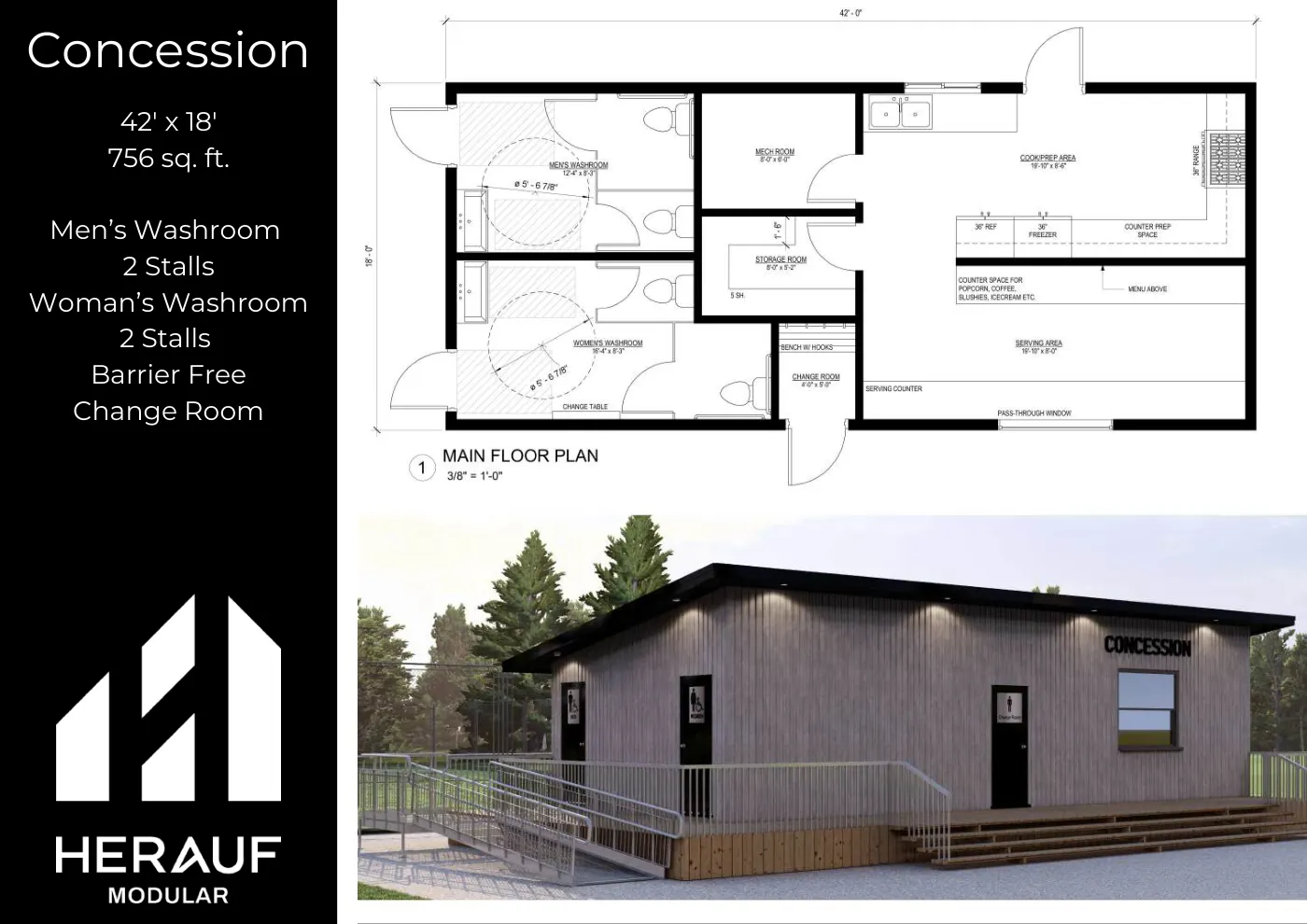

Concession, 42' × 18'	Length × width42' × 18'	Floor area756 sq ft	Rooms and features, as printed Men's washroom: 2 stalls Women's washroom: 2 stalls Barrier-free Change room	Brochure p. 11, Concession, 42' × 18' (PDF)

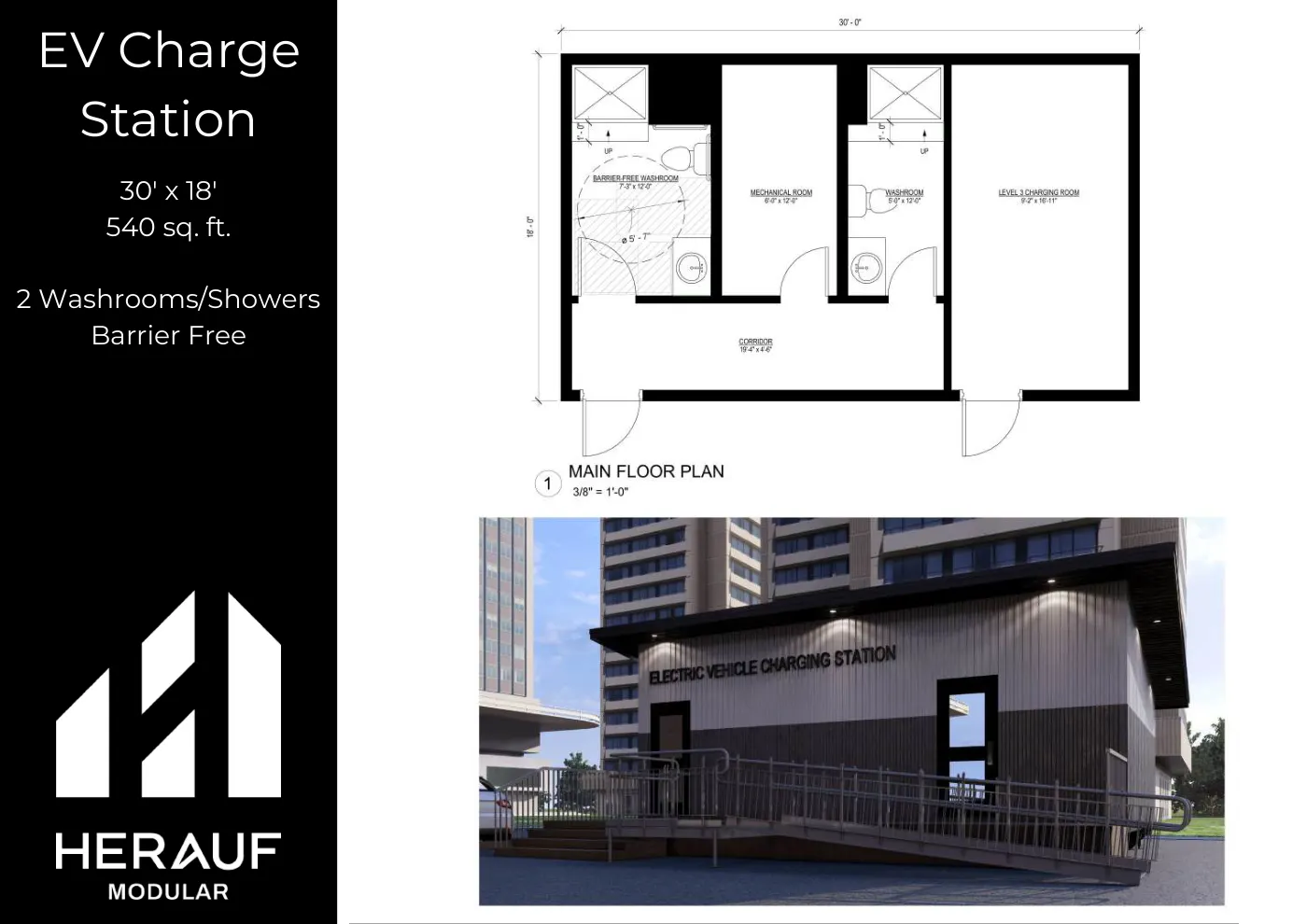

EV charging station	Length × width30' × 18'	Floor area540 sq ft	Rooms and features, as printed 2 washrooms/showers Barrier-free On the drawing: Level 3 charging room, Mechanical room	Brochure p. 13, EV charging station (PDF)

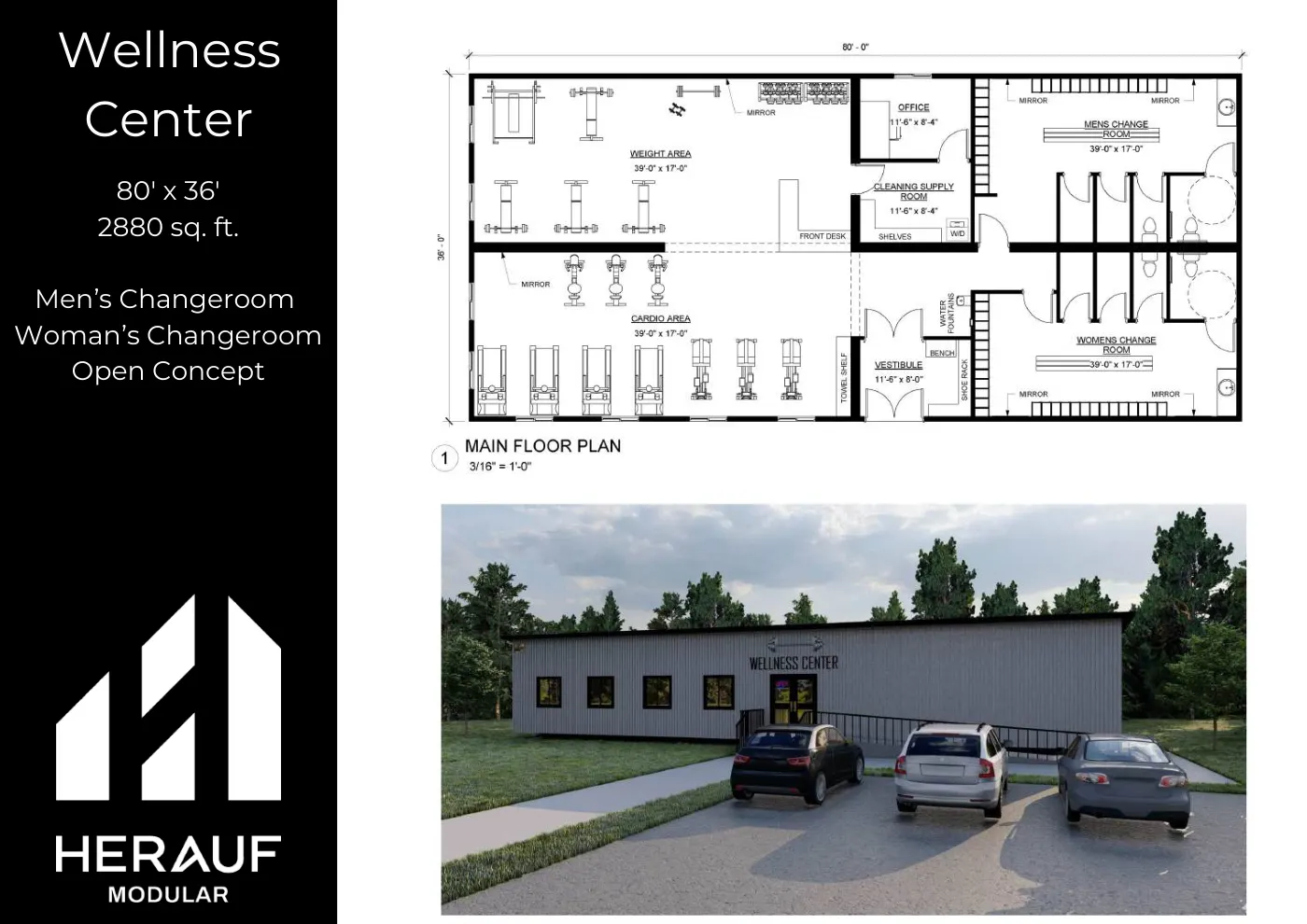

Wellness centre	Length × width80' × 36'	Floor area2,880 sq ft	Rooms and features, as printed Men's change room Women's change room Open concept	Brochure p. 15, Wellness centre (PDF)

Medical and pharmacy

A pharmacy with a vault, a three-exam-room medical centre and a single-room barrier-free first-aid building, from the Commercial Brochure.

Sector page: Commercial modular buildings · Commercial Brochure (PDF)

Medical and pharmacy: floor plans with dimensions, area and rooms as printed

Plan	Length × width	Floor area	Rooms and features, as printed	Drawing

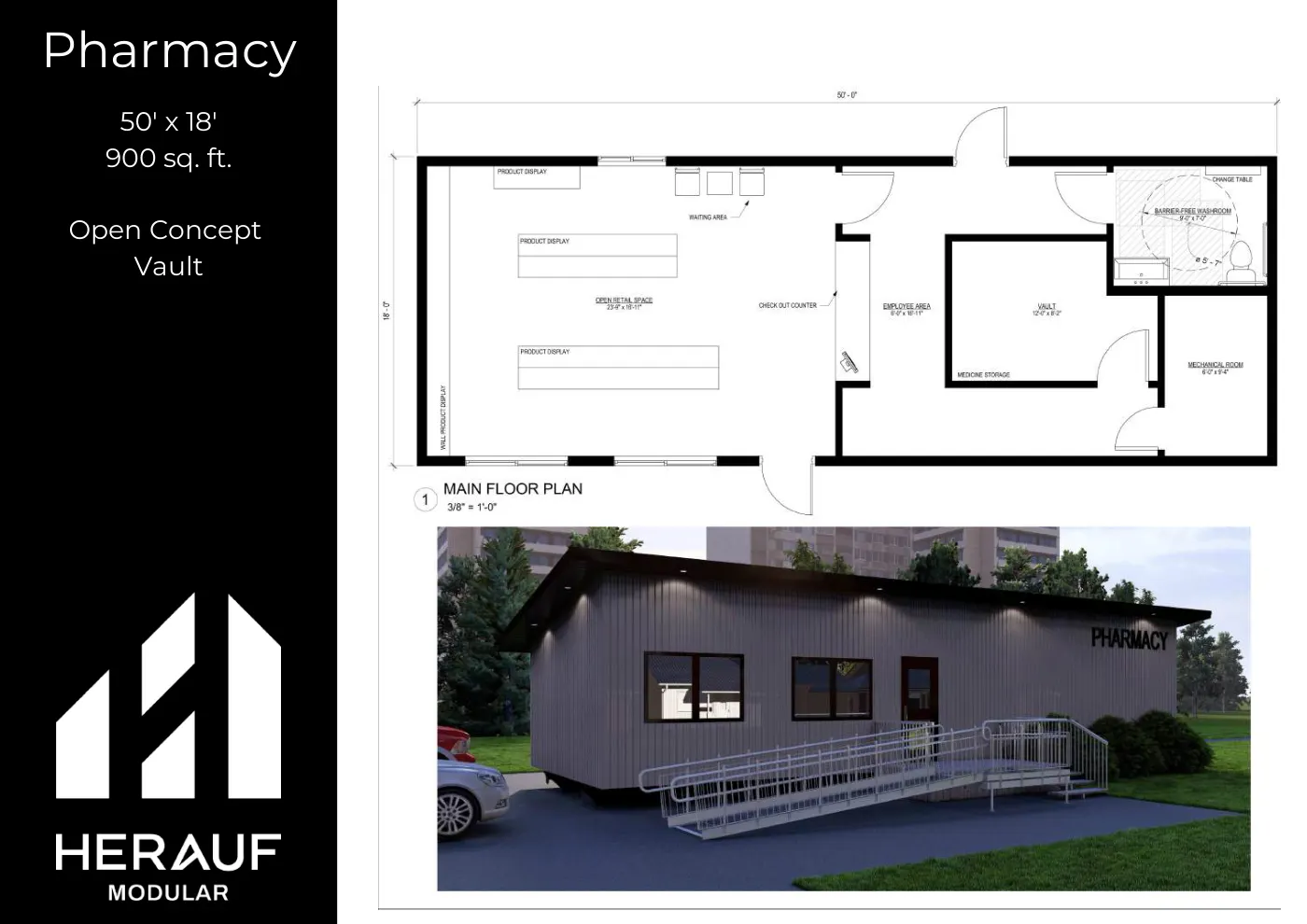

Pharmacy	Length × width50' × 18'	Floor area900 sq ft	Rooms and features, as printed Open concept Vault	Brochure p. 17, Pharmacy (PDF)

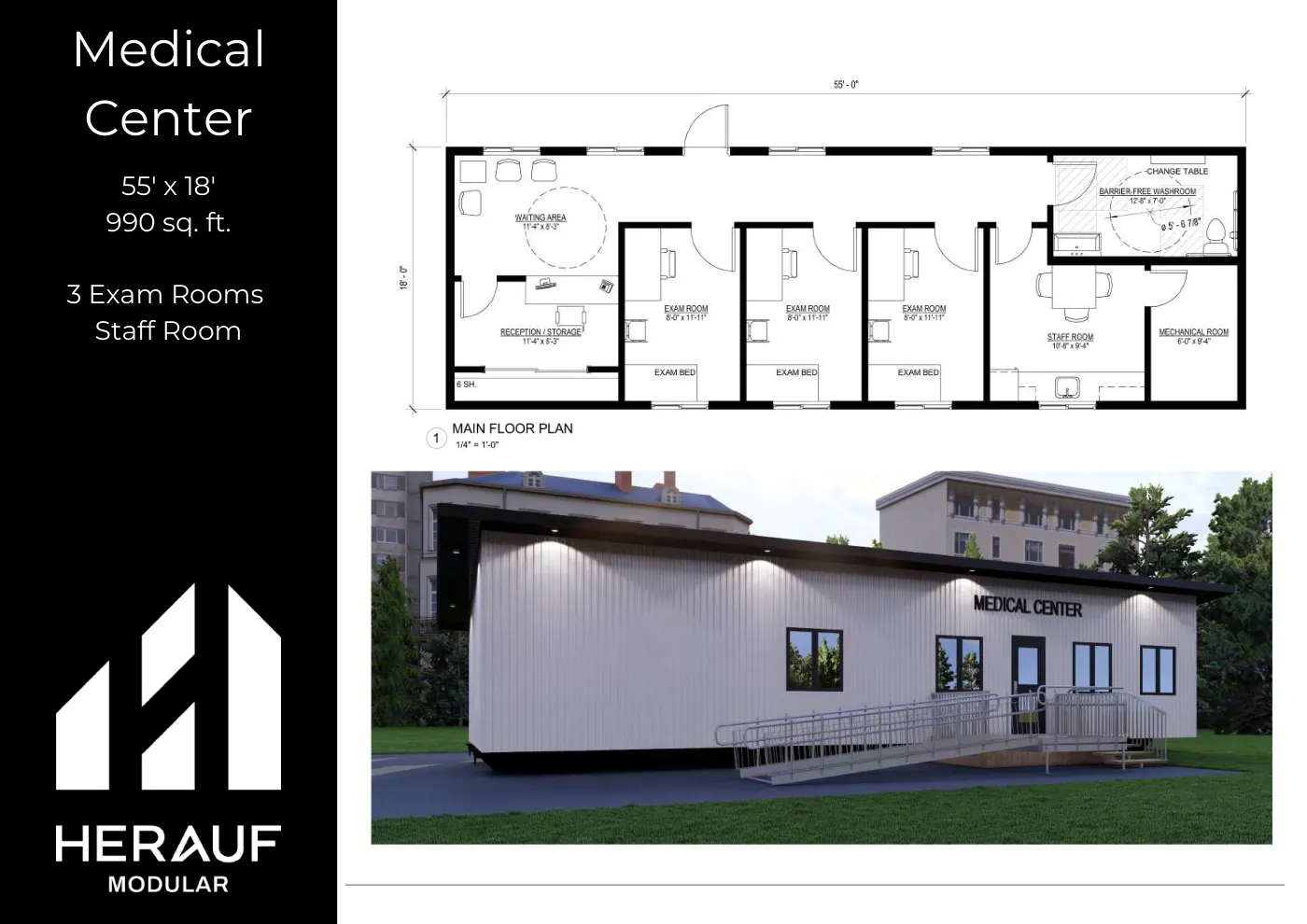

Medical centre, 55' × 18'	Length × width55' × 18'	Floor area990 sq ft	Rooms and features, as printed 3 exam rooms Staff room	Brochure p. 18, Medical centre, 55' × 18' (PDF)

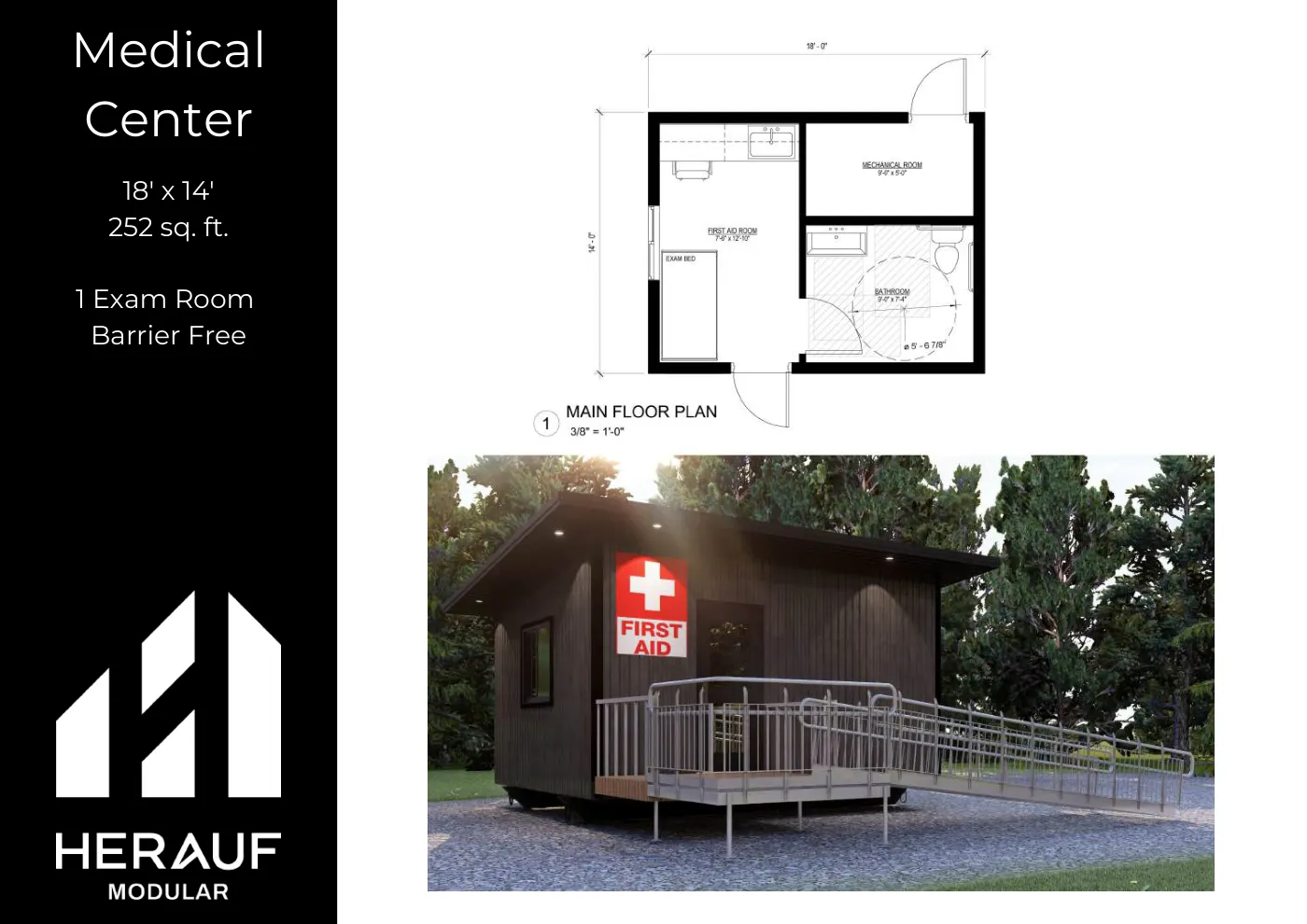

Medical centre, 18' × 14'	Length × width18' × 14'	Floor area252 sq ft	Rooms and features, as printed 1 exam room Barrier-free On the drawing: First-aid room, Bathroom, Mechanical room	Brochure p. 19, Medical centre, 18' × 14' (PDF)

Site offices, safety offices and quarters

The industrial layouts from the Commercial Brochure: a safety office, a site office and on-site quarters.

Sector page: Workforce camp and site buildings · Commercial Brochure (PDF)

Site offices, safety offices and quarters: floor plans with dimensions, area and rooms as printed

Plan	Length × width	Floor area	Rooms and features, as printed	Drawing

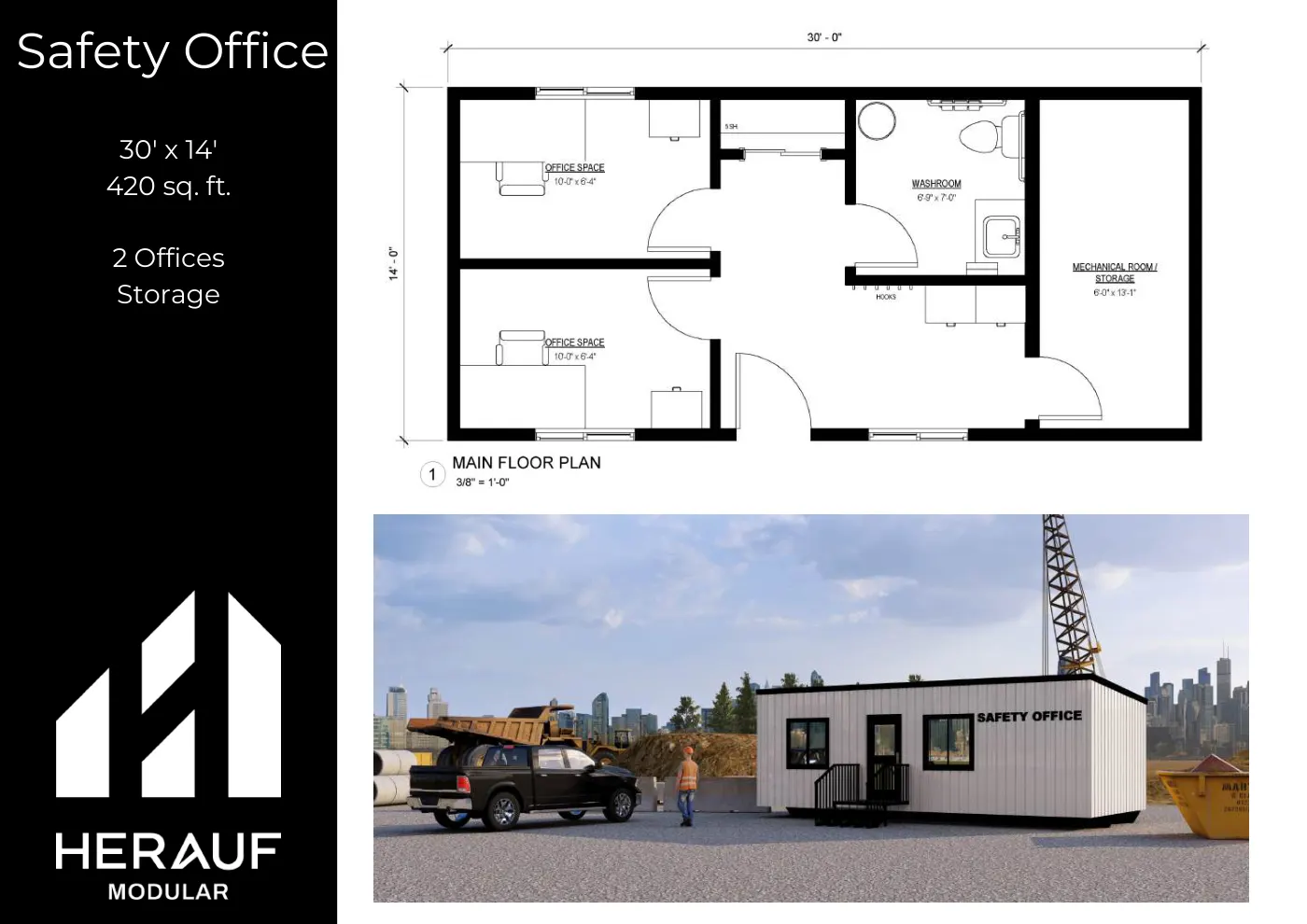

Safety office	Length × width30' × 14'	Floor area420 sq ft	Rooms and features, as printed 2 offices Storage	Brochure p. 22, Safety office (PDF)

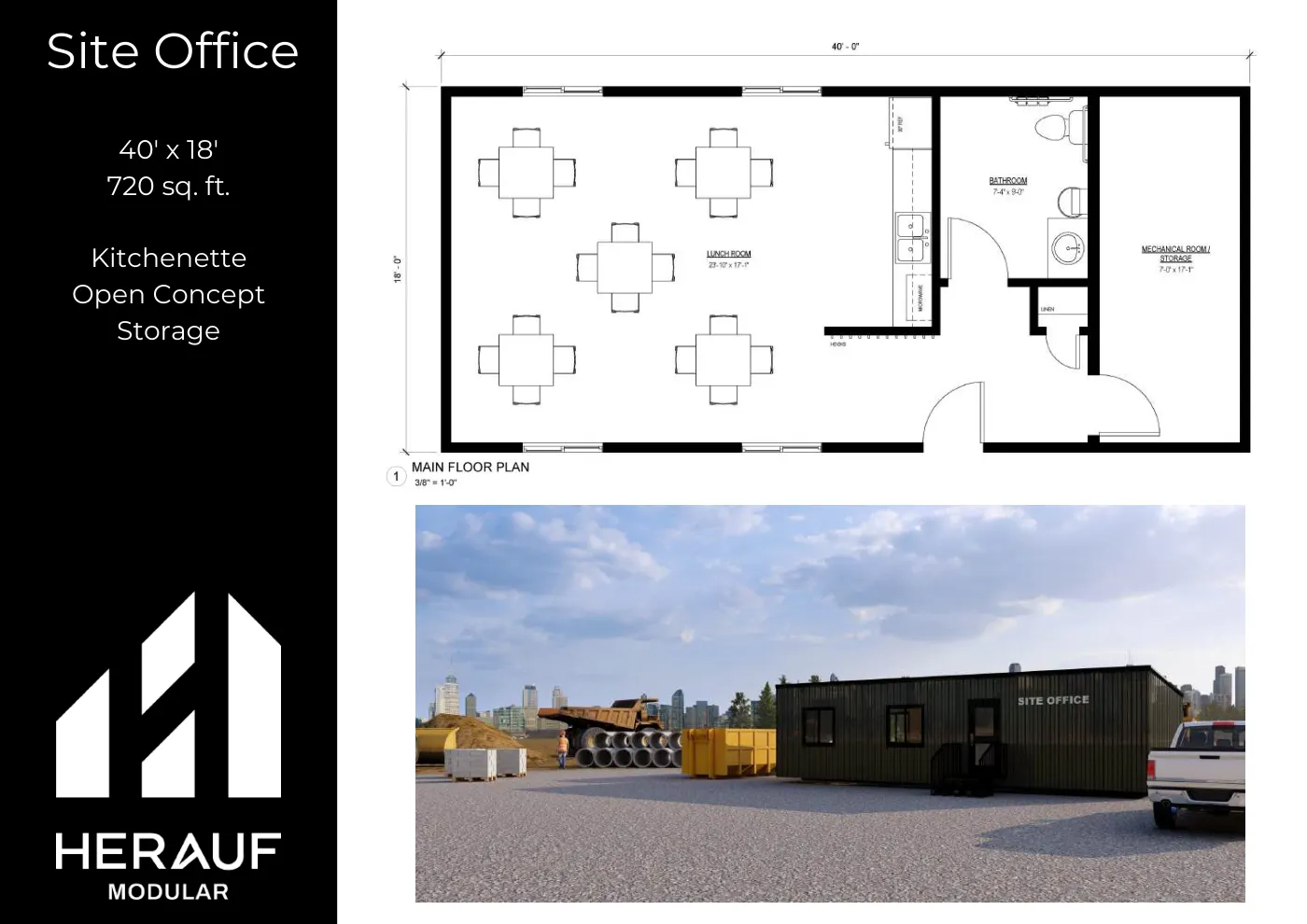

Site office	Length × width40' × 18'	Floor area720 sq ft	Rooms and features, as printed Kitchenette Open concept Storage On the drawing: Lunch room, Bathroom, Mechanical room / storage	Brochure p. 23, Site office (PDF)

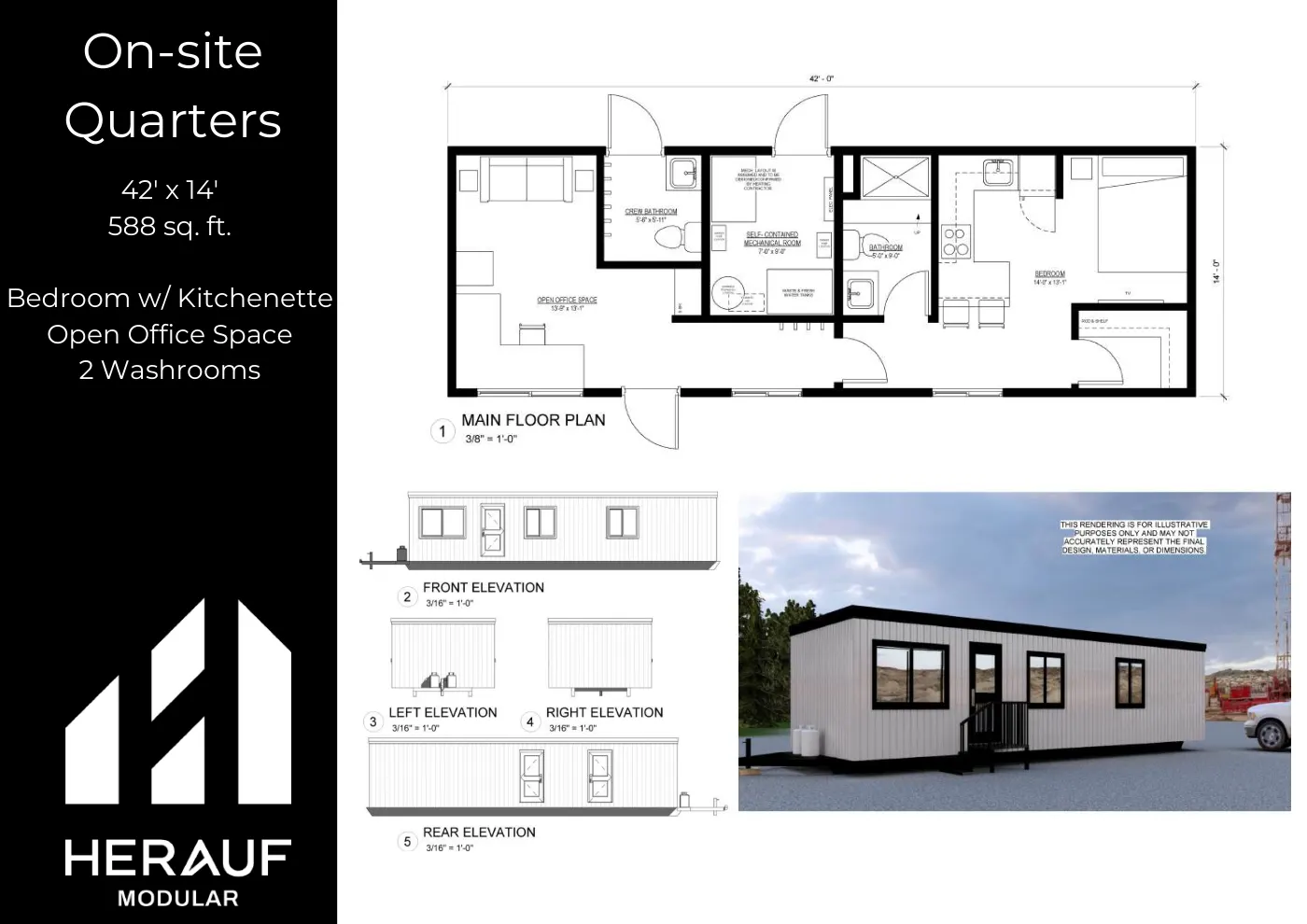

On-site quarters	Length × width42' × 14'	Floor area588 sq ft	Rooms and features, as printed Bedroom with kitchenette Open office space 2 washrooms On the drawing: Self-contained mechanical room	Brochure p. 24, On-site quarters (PDF)

Washroom and shower buildings

Every layout in the Washrooms & Showers Brochure, shower units first, then washroom-only units. Each is printed as barrier-free.

Sector page: Modular washroom and shower buildings · Washrooms & Showers Brochure (PDF)

Washroom and shower buildings: floor plans with dimensions, area and rooms as printed

Plan	Length × width	Floor area	Rooms and features, as printed	Drawing

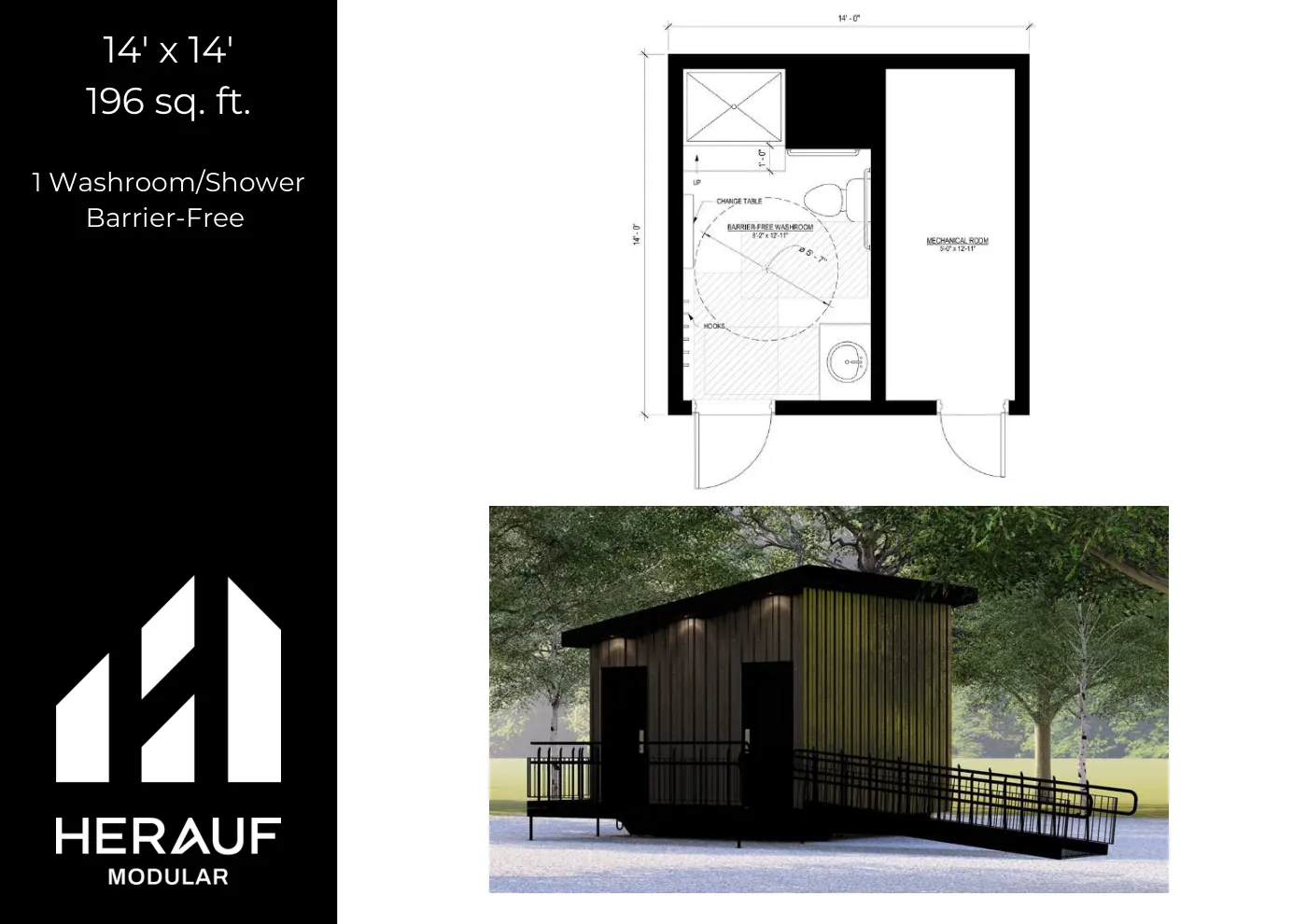

Washroom/shower unit, 14' × 14'	Length × width14' × 14'	Floor area196 sq ft	Rooms and features, as printed 1 washroom/shower Barrier-free	Brochure p. 4, Washroom/shower unit, 14' × 14' (PDF)

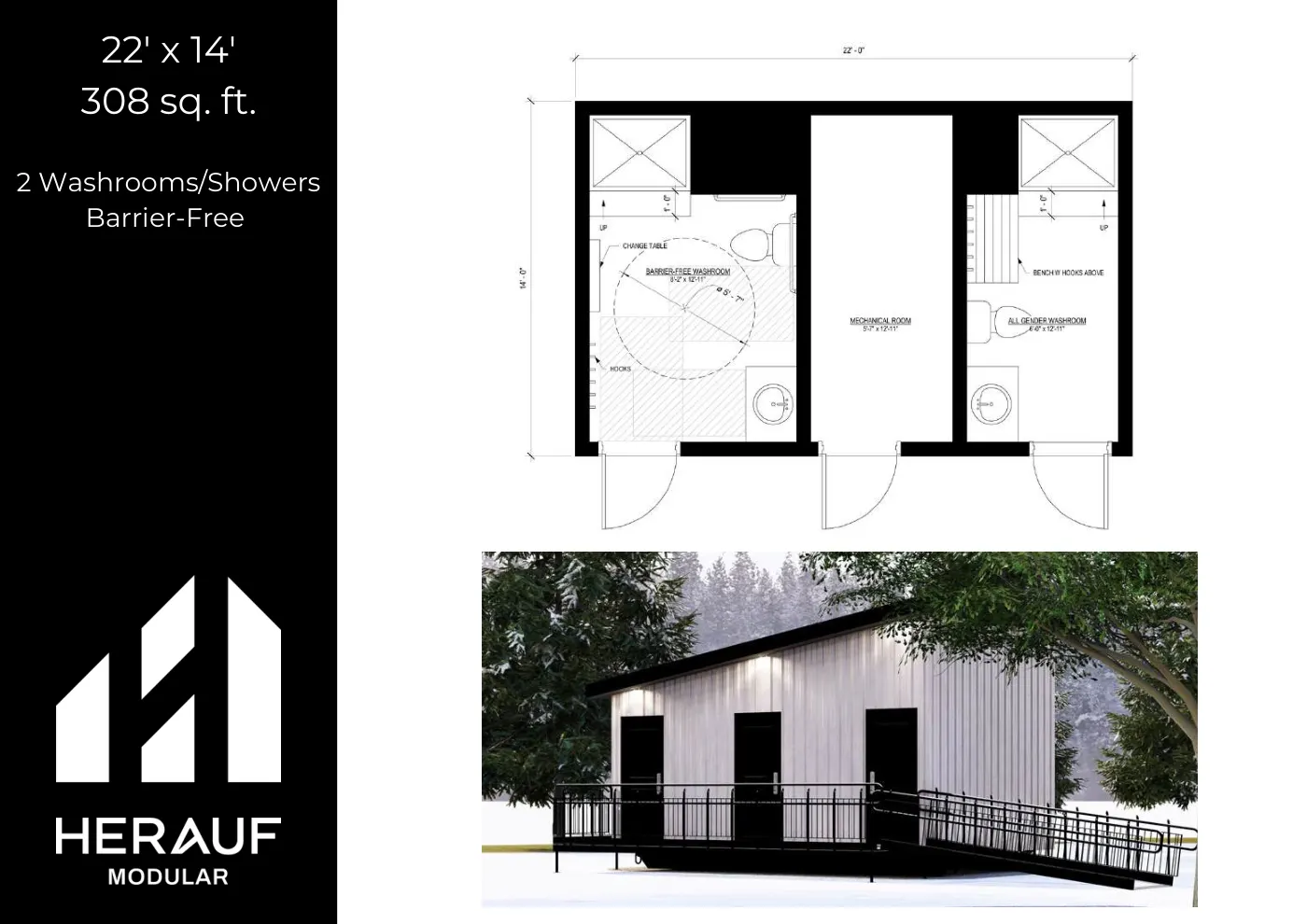

Washroom/shower unit, 22' × 14'	Length × width22' × 14'	Floor area308 sq ft	Rooms and features, as printed 2 washrooms/showers Barrier-free	Brochure p. 5, Washroom/shower unit, 22' × 14' (PDF)

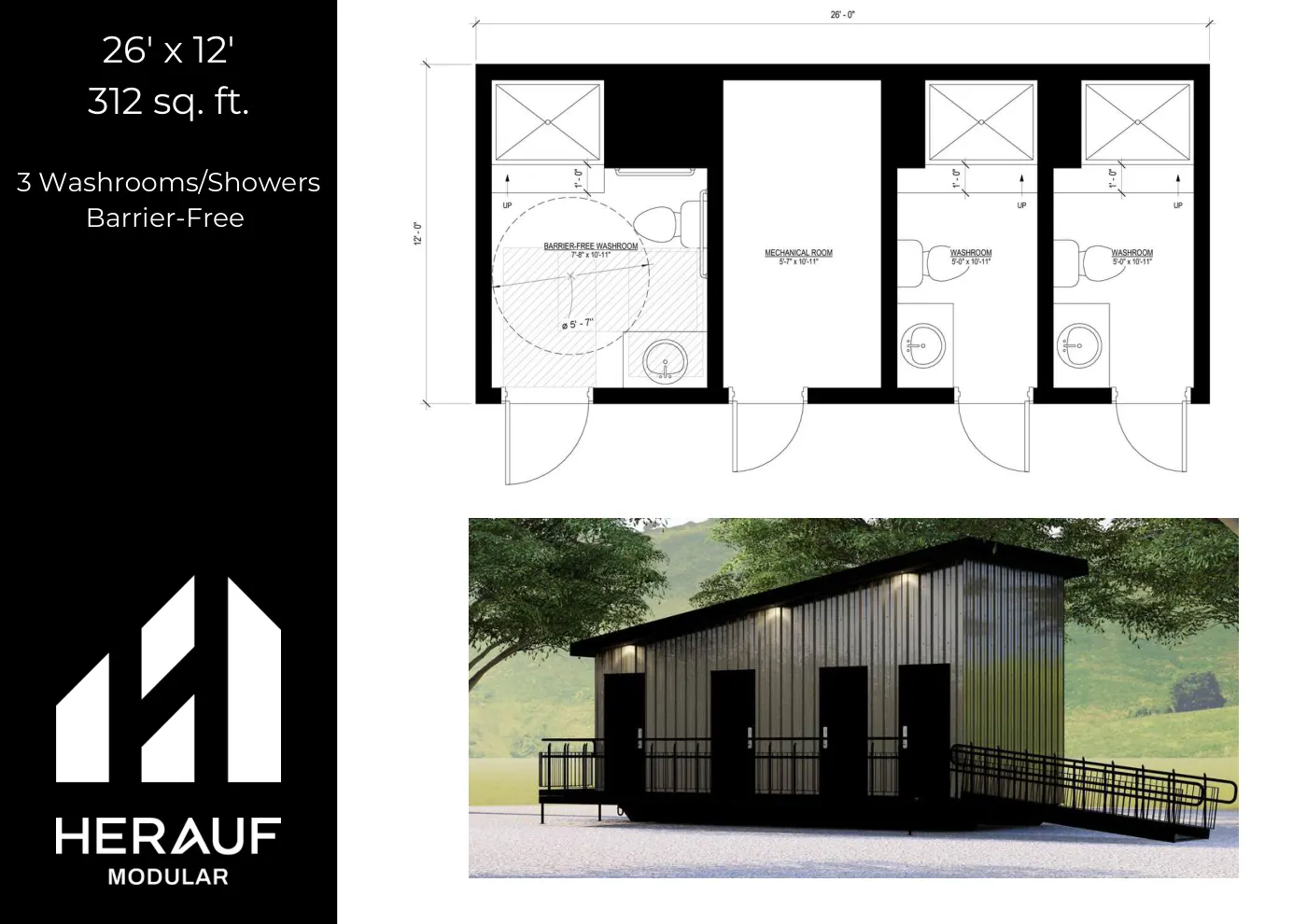

Washroom/shower unit, 26' × 12'	Length × width26' × 12'	Floor area312 sq ft	Rooms and features, as printed 3 washrooms/showers Barrier-free	Brochure p. 7, Washroom/shower unit, 26' × 12' (PDF)

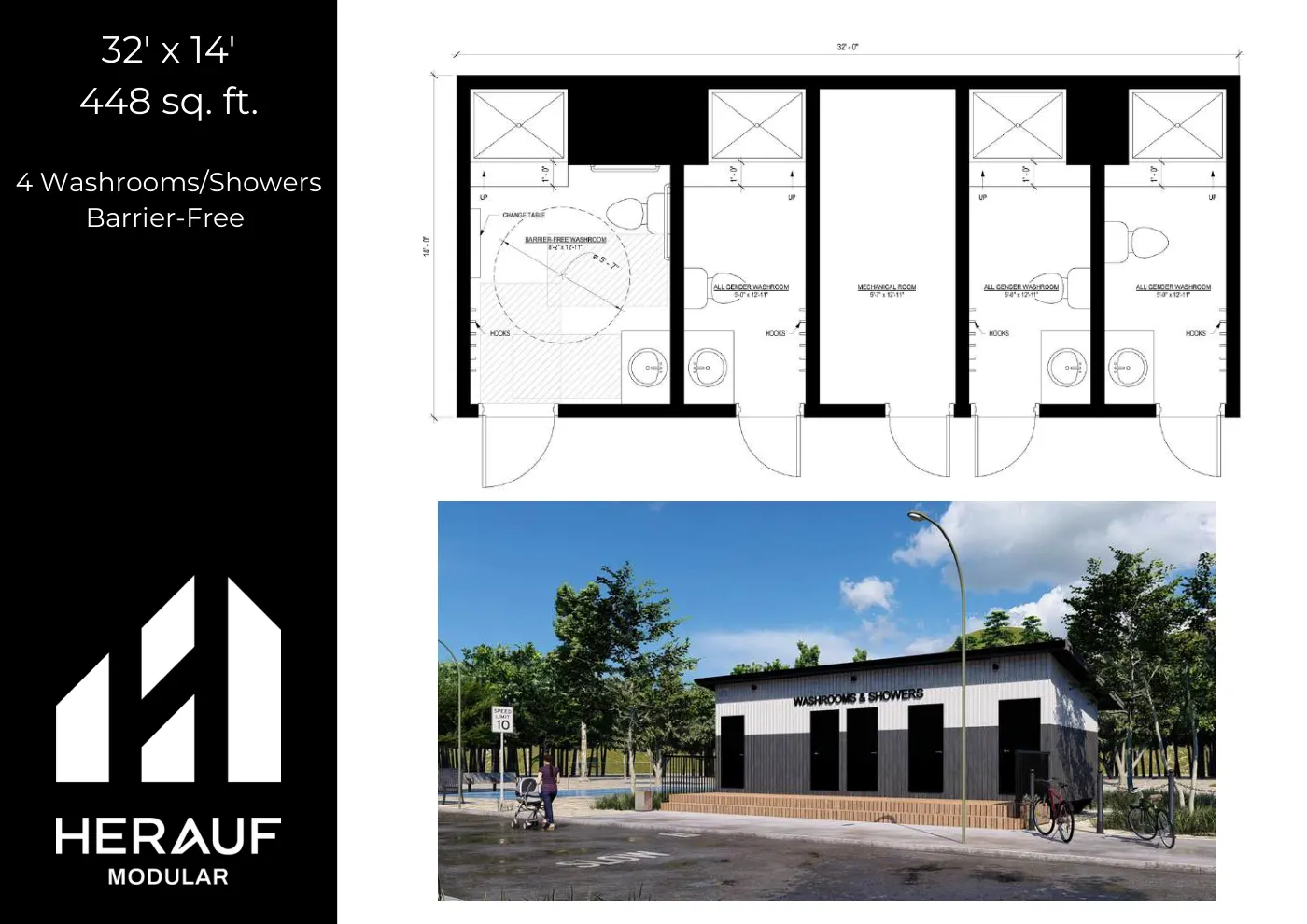

Washroom/shower unit, 32' × 14'	Length × width32' × 14'	Floor area448 sq ft	Rooms and features, as printed 4 washrooms/showers Barrier-free	Brochure p. 9, Washroom/shower unit, 32' × 14' (PDF)

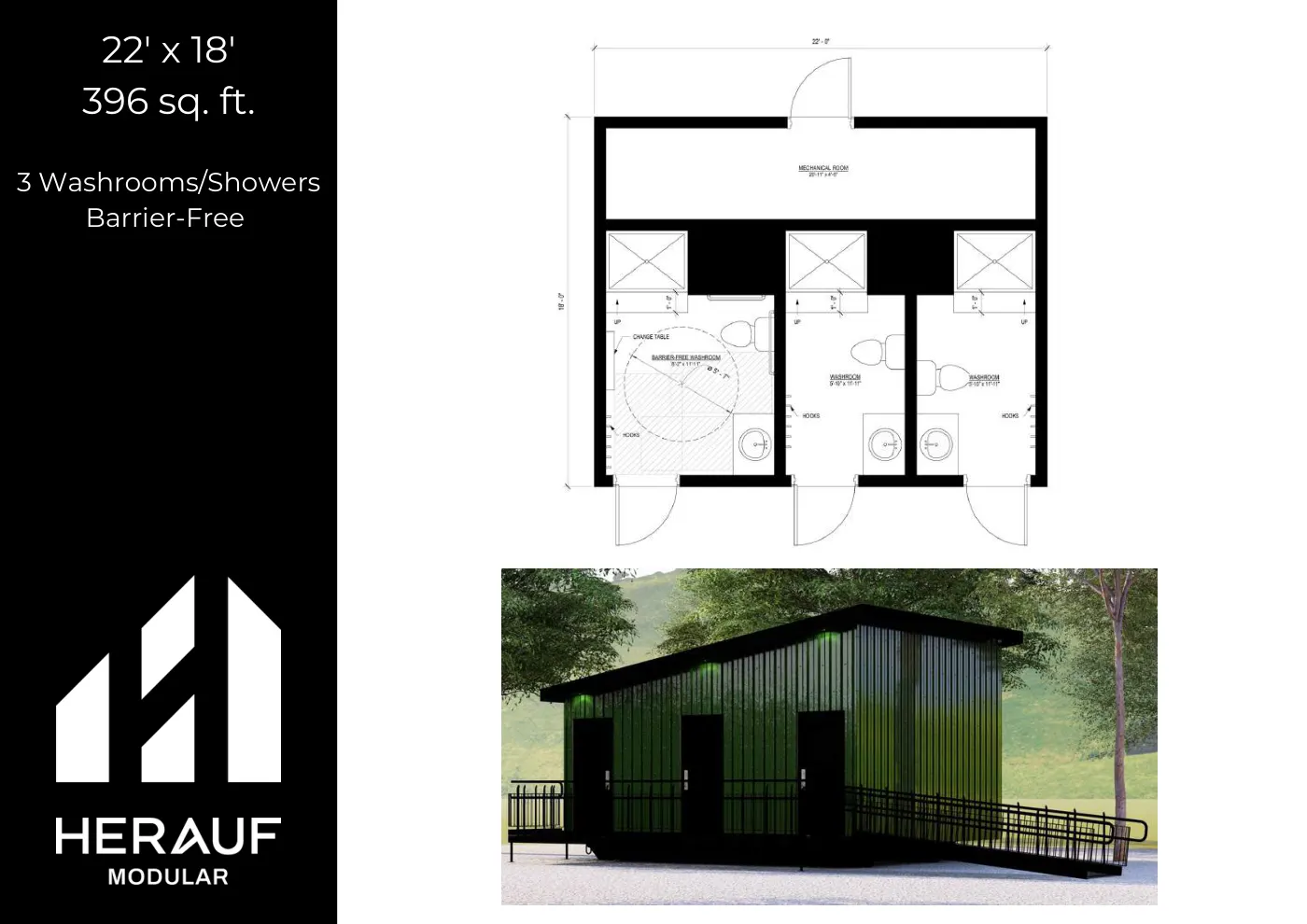

Washroom/shower unit, 22' × 18'	Length × width22' × 18'	Floor area396 sq ft	Rooms and features, as printed 3 washrooms/showers Barrier-free	Brochure p. 10, Washroom/shower unit, 22' × 18' (PDF)

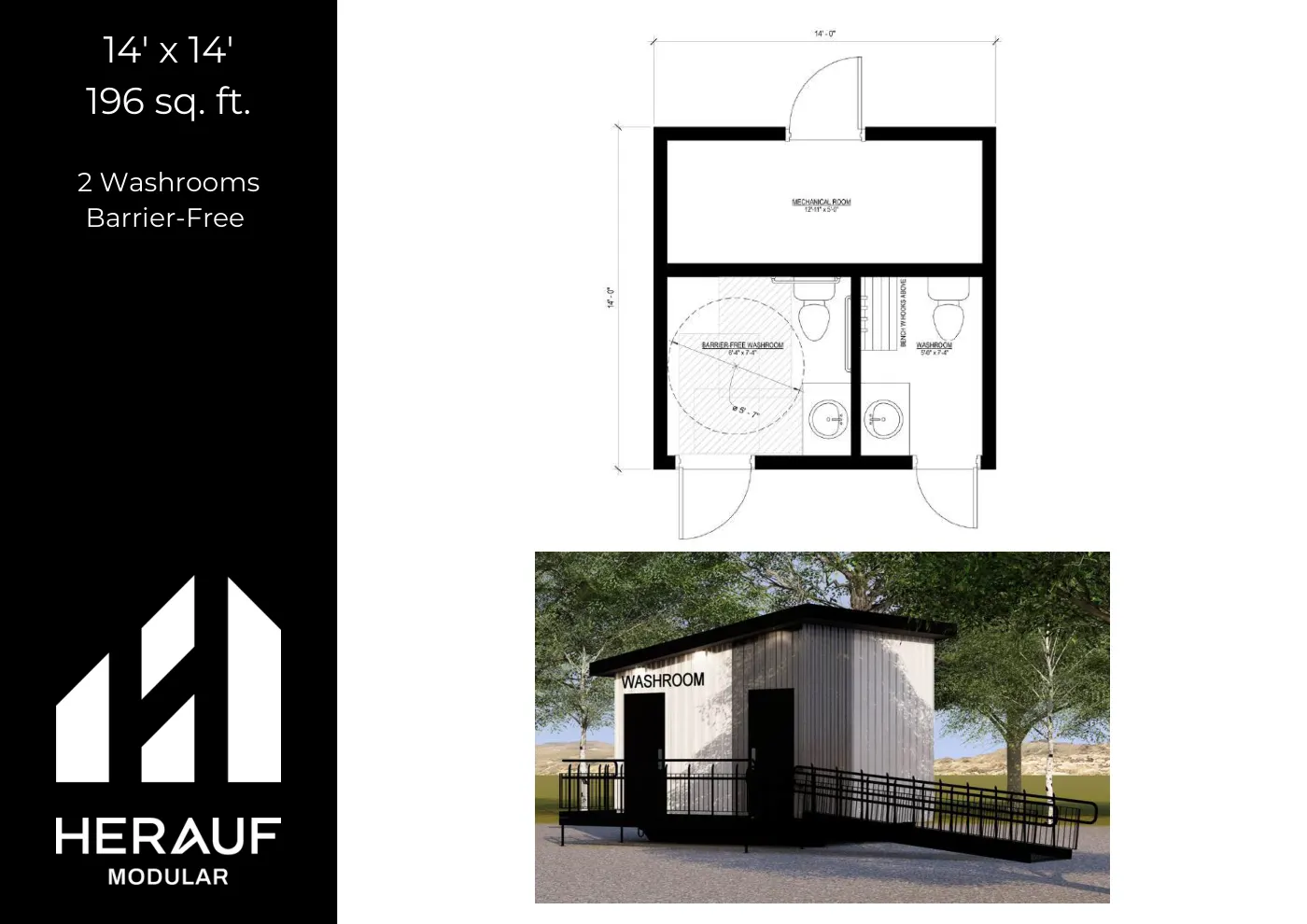

Washroom unit, 14' × 14'	Length × width14' × 14'	Floor area196 sq ft	Rooms and features, as printed 2 washrooms Barrier-free	Brochure p. 12, Washroom unit, 14' × 14' (PDF)

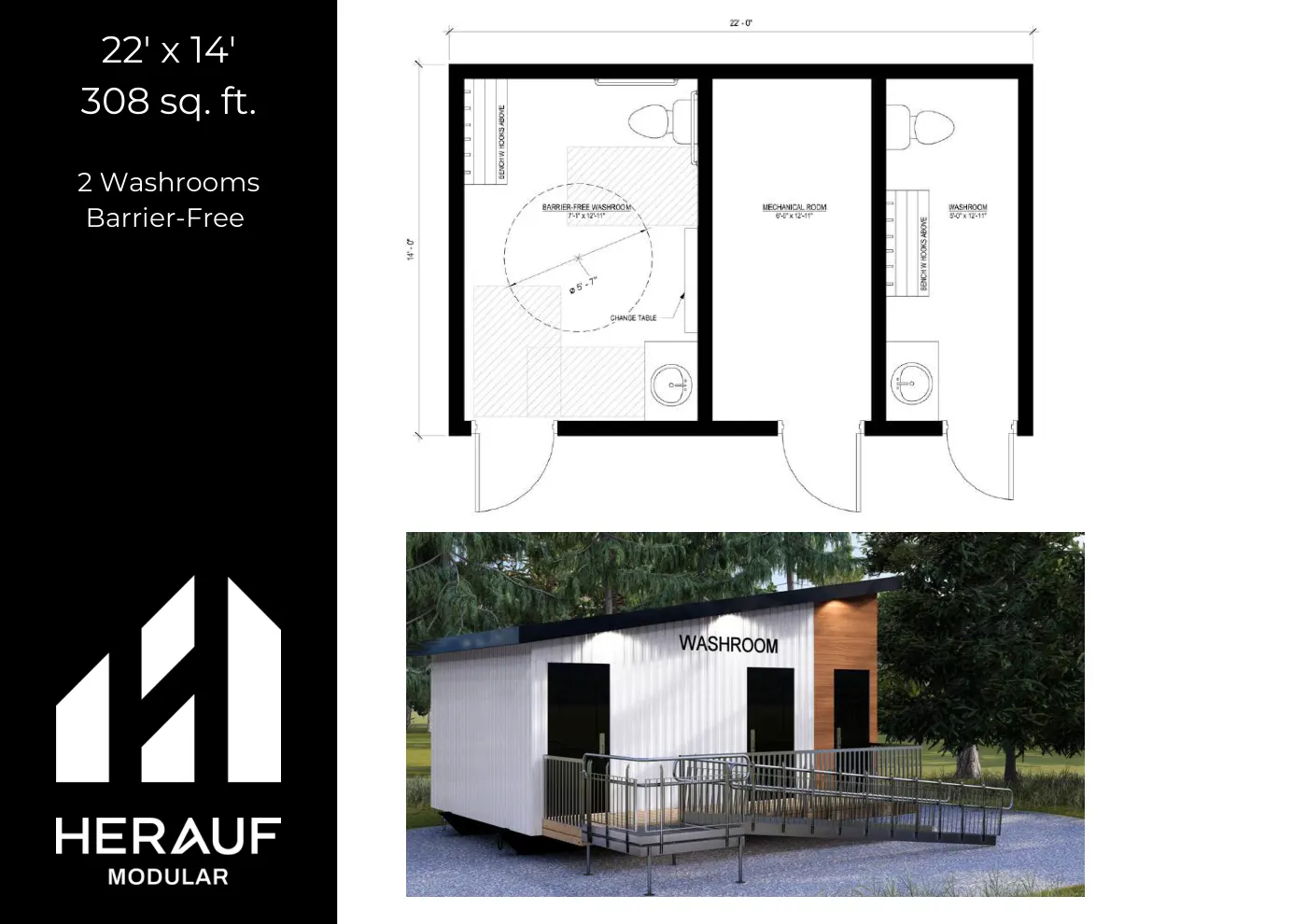

Washroom unit, 22' × 14'	Length × width22' × 14'	Floor area308 sq ft	Rooms and features, as printed 2 washrooms Barrier-free	Brochure p. 14, Washroom unit, 22' × 14' (PDF)

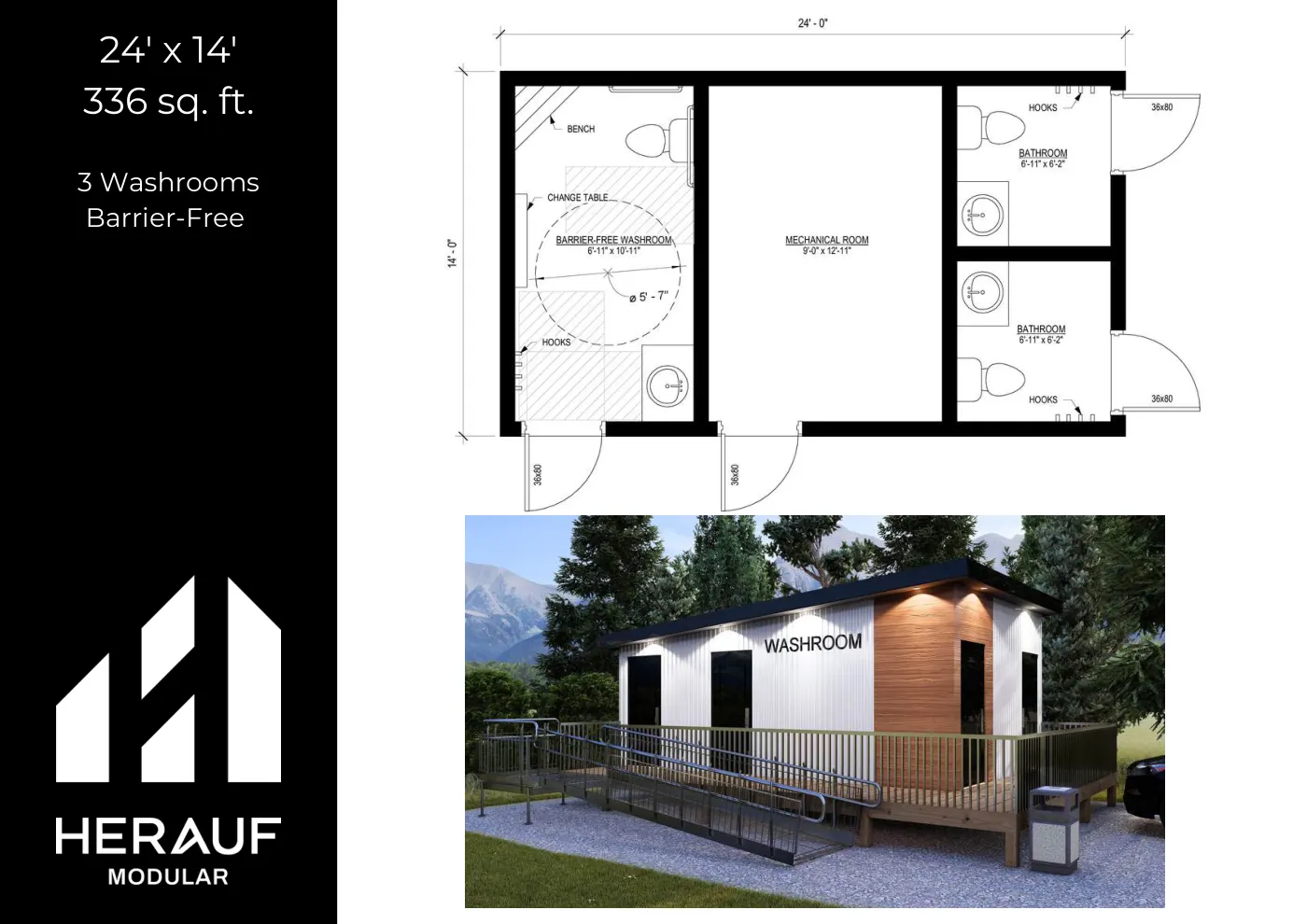

Washroom unit, 24' × 14'	Length × width24' × 14'	Floor area336 sq ft	Rooms and features, as printed 3 washrooms Barrier-free	Brochure p. 16, Washroom unit, 24' × 14' (PDF)

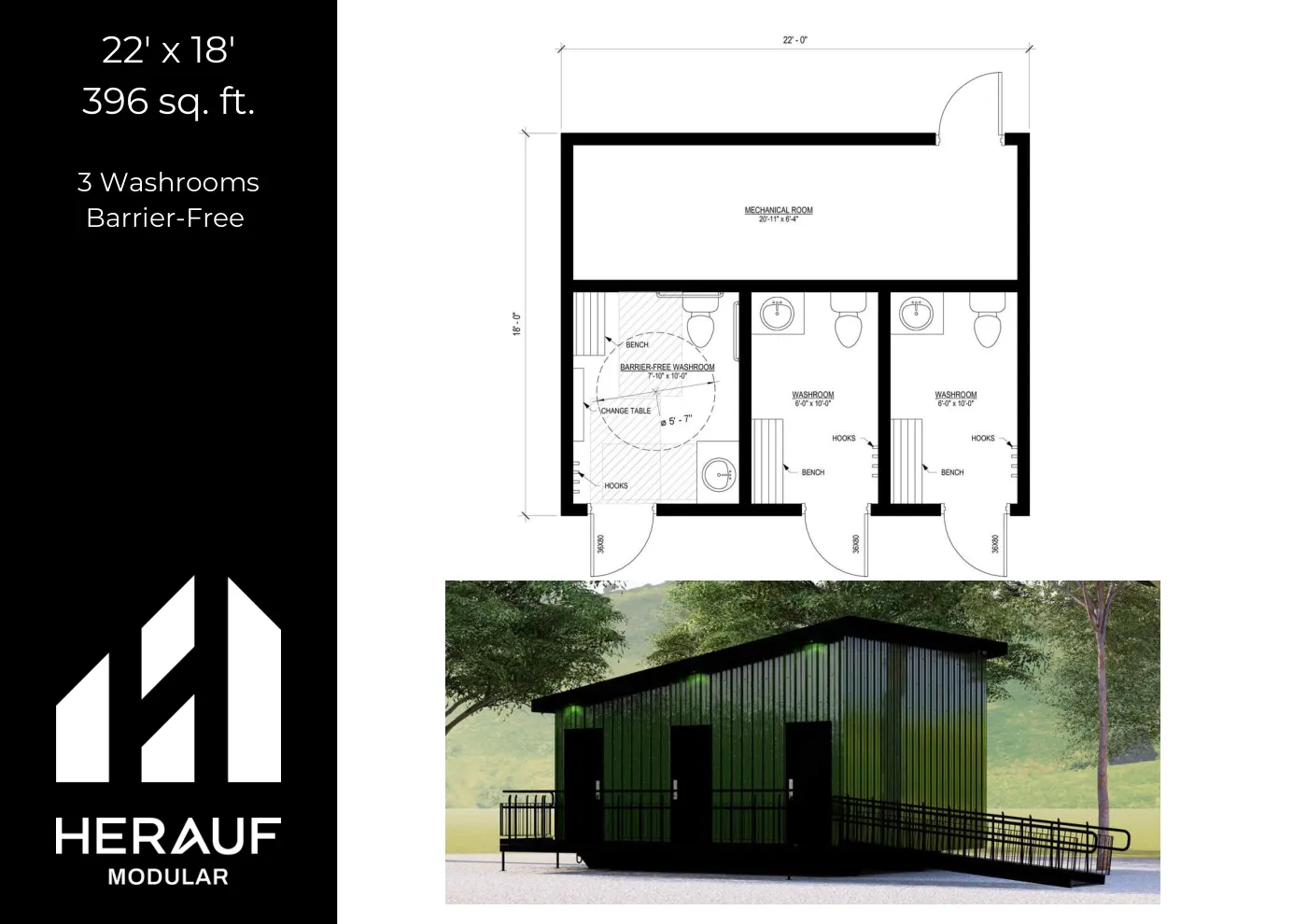

Washroom unit, 22' × 18'	Length × width22' × 18'	Floor area396 sq ft	Rooms and features, as printed 3 washrooms Barrier-free	Brochure p. 17, Washroom unit, 22' × 18' (PDF)

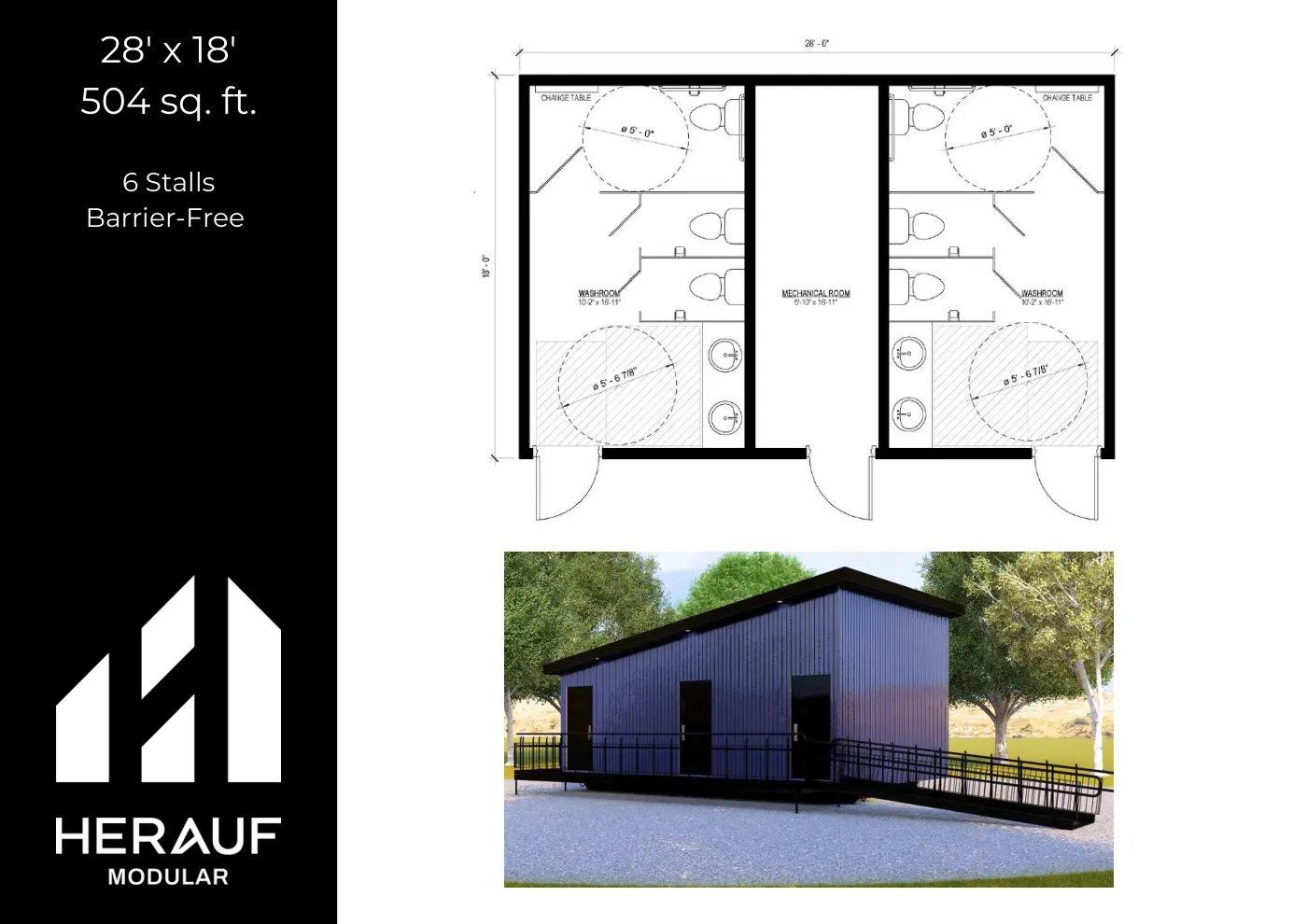

Washroom unit, 28' × 18'	Length × width28' × 18'	Floor area504 sq ft	Rooms and features, as printed 6 stalls Barrier-free	Brochure p. 19, Washroom unit, 28' × 18' (PDF)

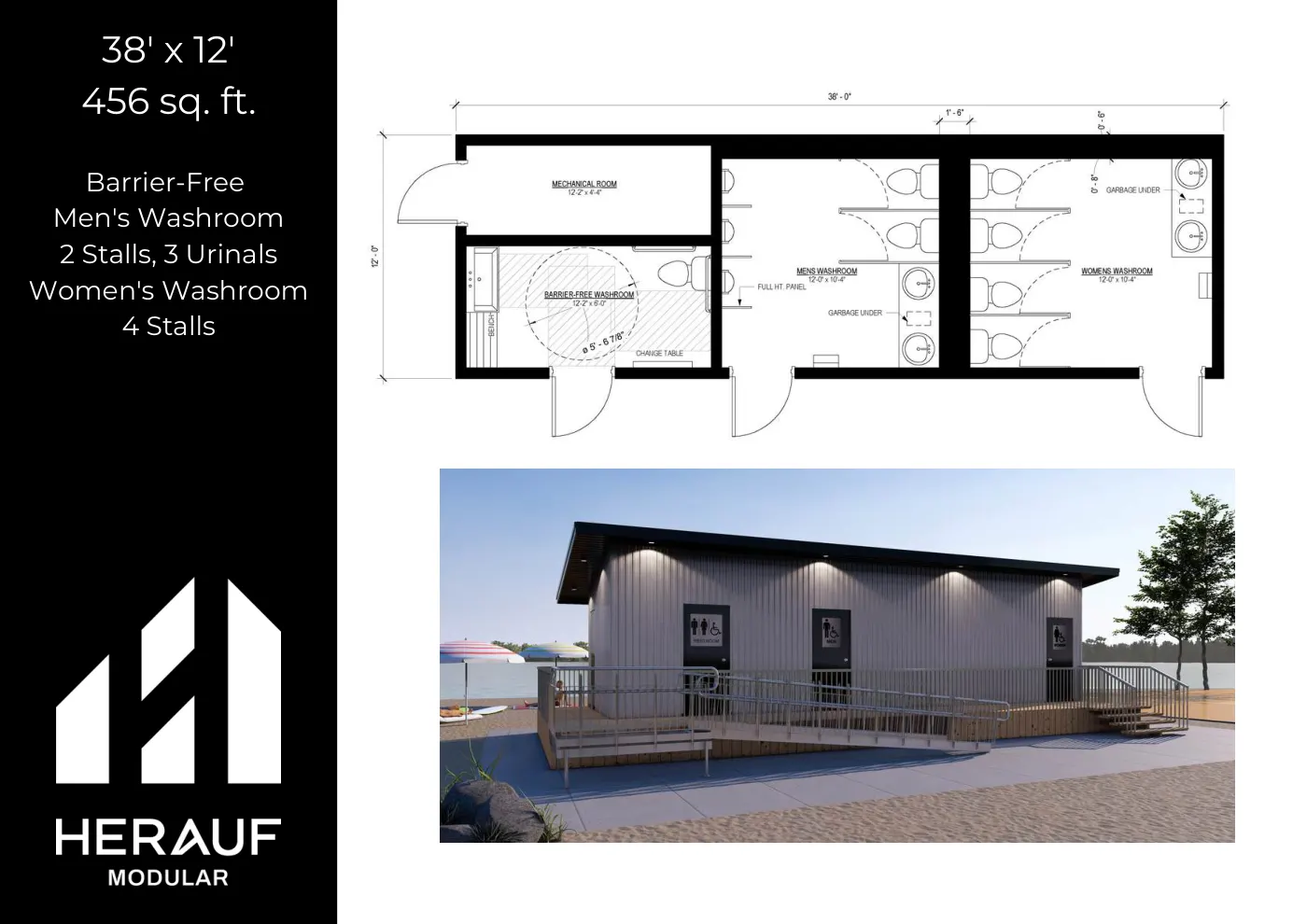

Washroom unit, 38' × 12'	Length × width38' × 12'	Floor area456 sq ft	Rooms and features, as printed Barrier-free Men's washroom: 2 stalls, 3 urinals Women's washroom: 4 stalls	Brochure p. 20, Washroom unit, 38' × 12' (PDF)

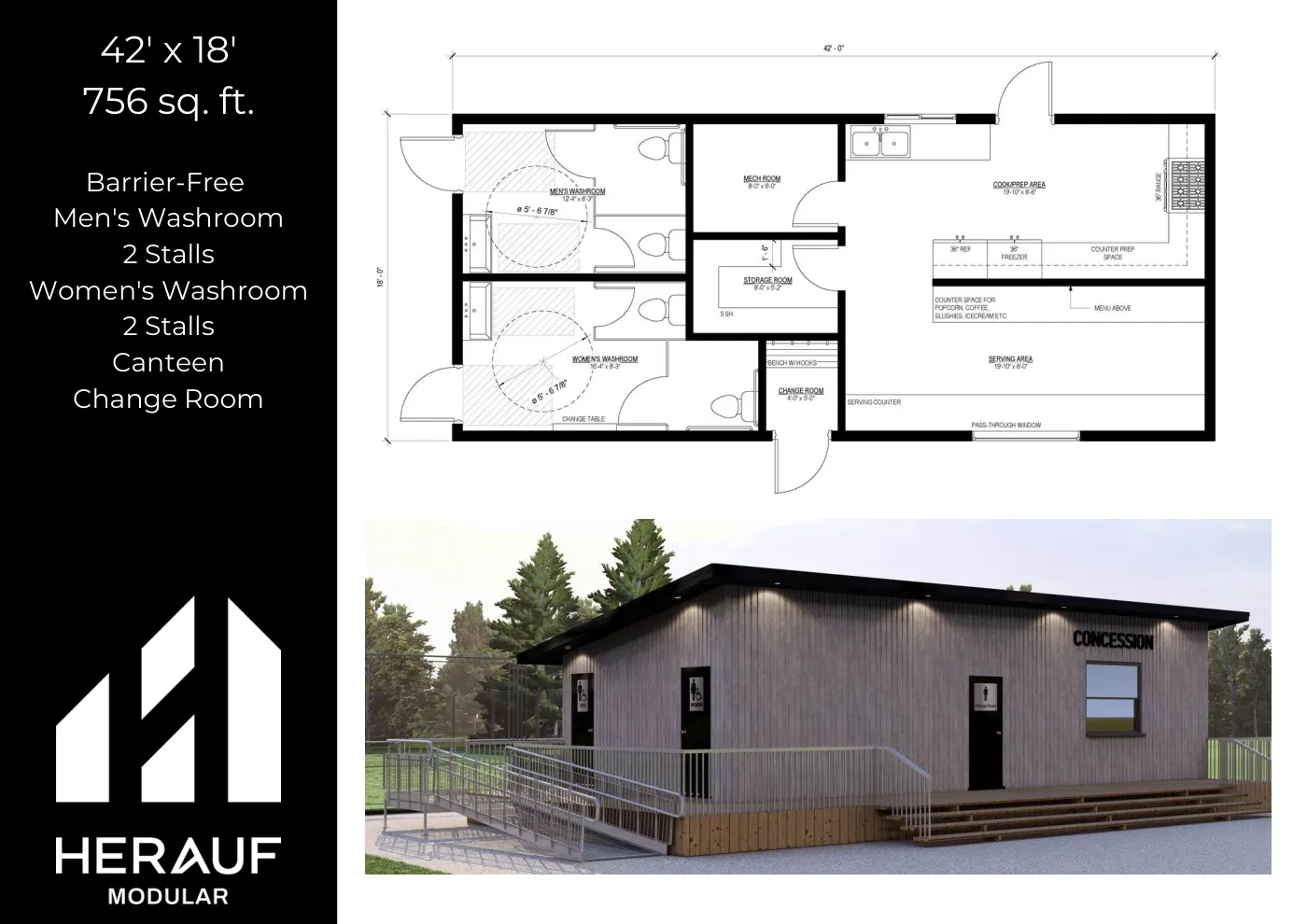

Washroom unit, 42' × 18'	Length × width42' × 18'	Floor area756 sq ft	Rooms and features, as printed Barrier-free Men's washroom: 2 stalls Women's washroom: 2 stalls Canteen Change room	Brochure p. 21, Washroom unit, 42' × 18' (PDF)

Daycares

The daycare line is published by capacity rather than footprint. The full drawings, with room sizes, are in the Daycare Brochure.

Sector page: Modular daycares and schools · Daycare Brochure (PDF)

Daycares: floor plans with dimensions, area and rooms as printed

Plan	Capacity	Rooms and features, as printed	Drawing

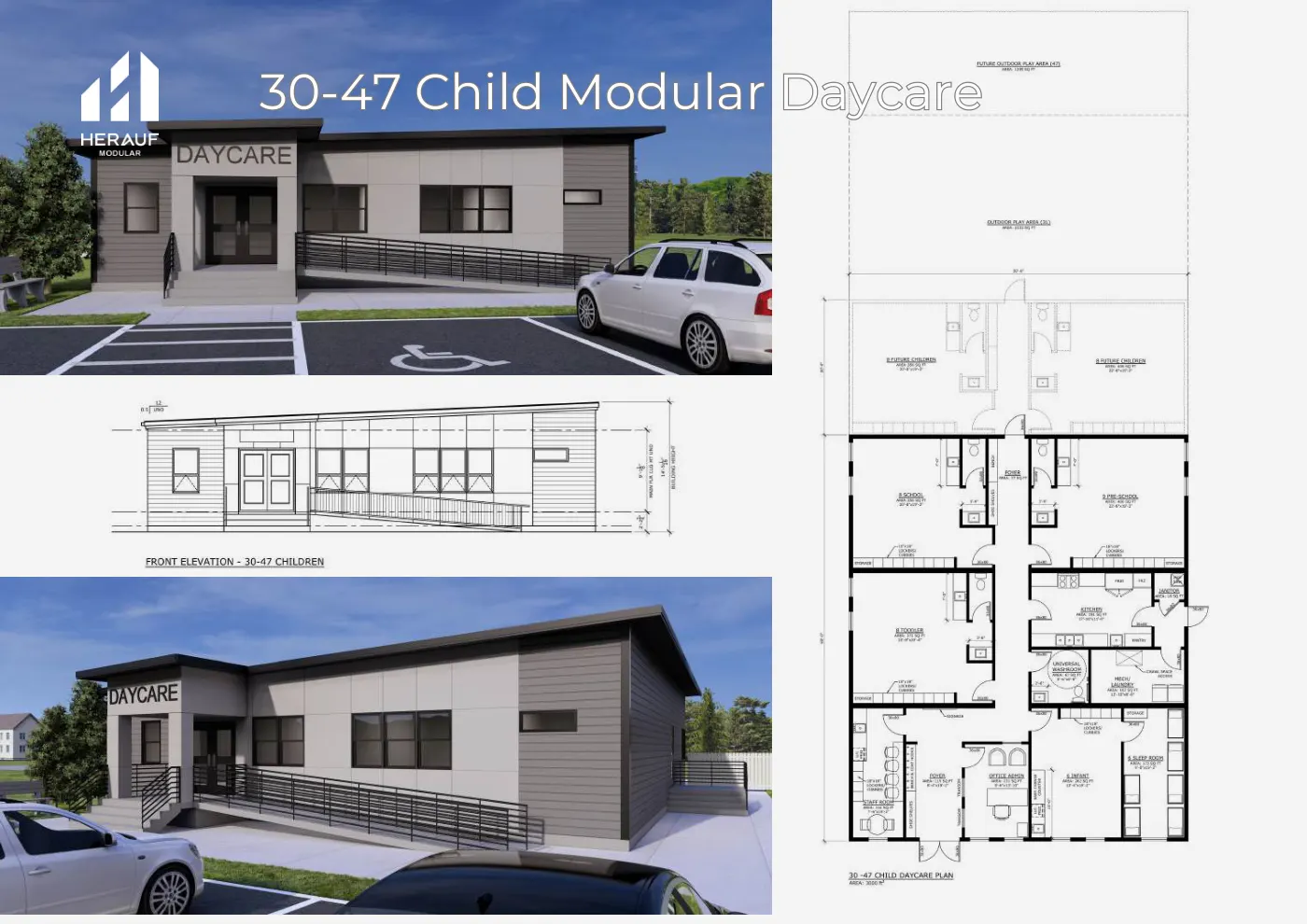

Daycare, 30 to 47 children	Capacity30 to 47 children	Rooms and features, as printed Compact and intimate For smaller communities or as an extension to an existing educational institution	Brochure p. 4, Daycare, 30 to 47 children (PDF)

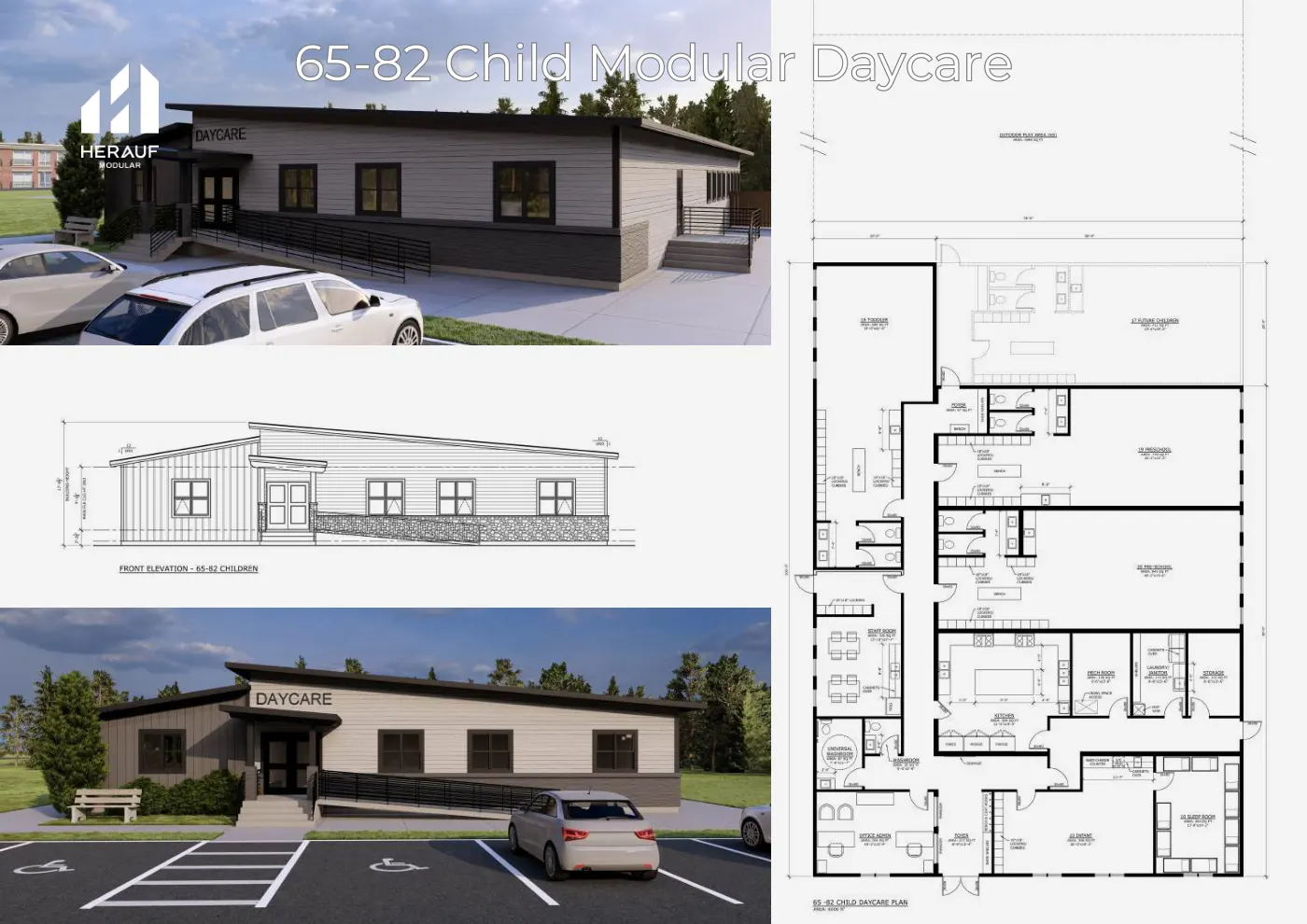

Daycare, 65 to 82 children	Capacity65 to 82 children	Rooms and features, as printed Community centred Doubles the capacity of the smaller tier	Brochure p. 5, Daycare, 65 to 82 children (PDF)

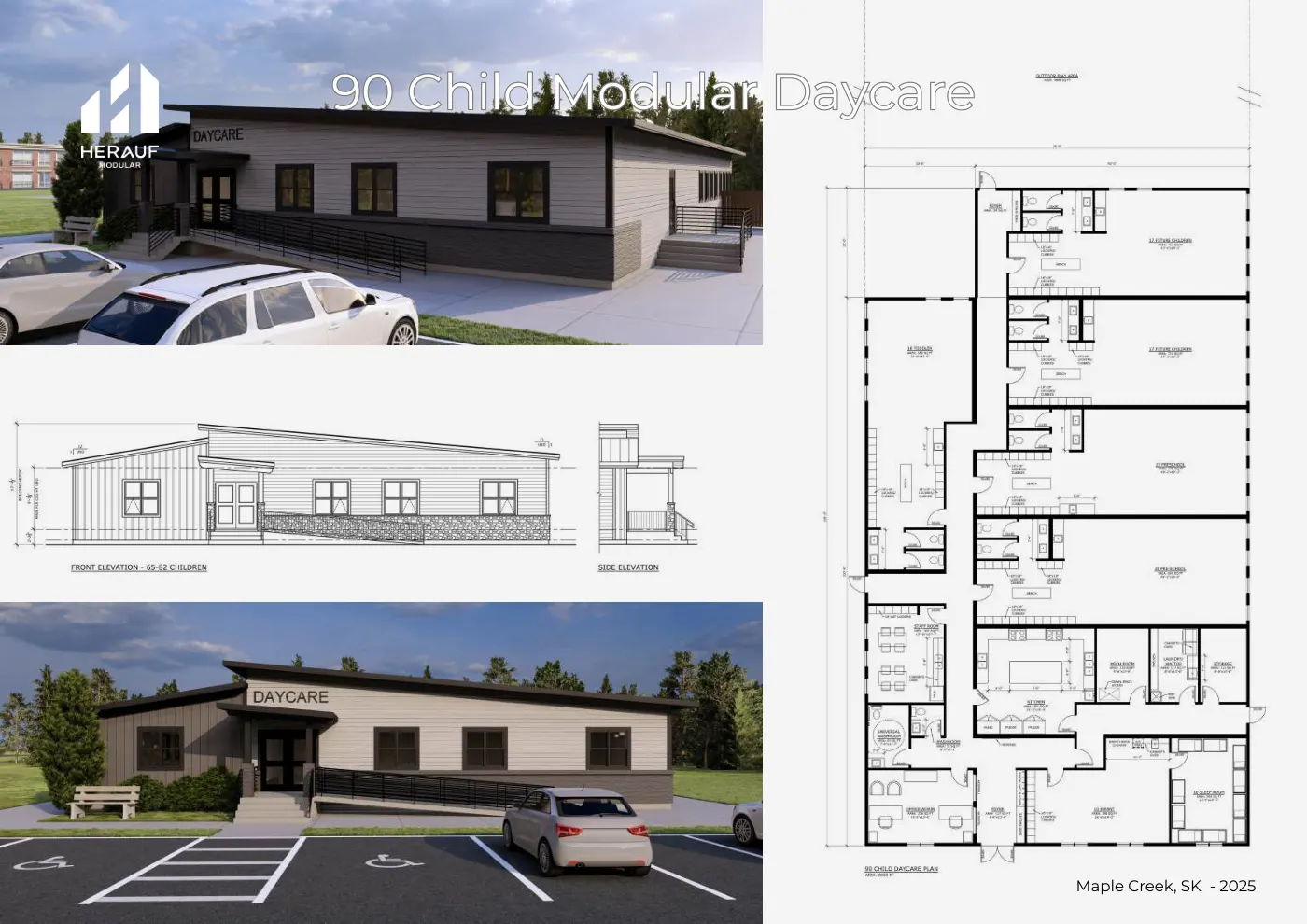

Daycare, 90 children	Capacity90 children	Rooms and features, as printed School-age, preschool, toddler and infant rooms Sleep room Kitchen Staff room	Brochure p. 6, Daycare, 90 children (PDF)

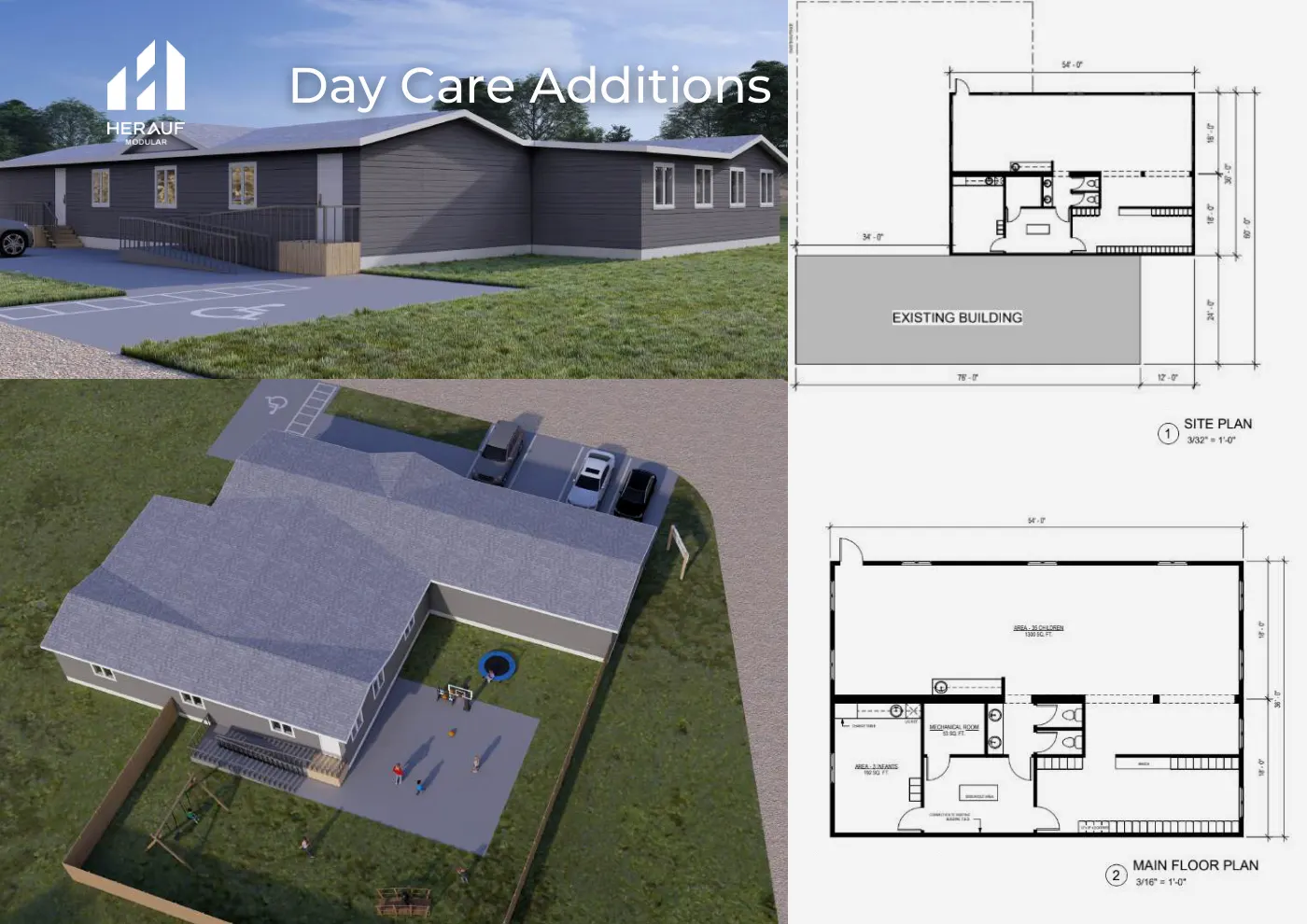

Daycare additions	CapacitySee drawing	Rooms and features, as printed Modular additions that connect to an existing building	Brochure p. 8, Daycare additions (PDF)

What comes standard in every plan?

Code

Meets or exceeds CSA A277 and the National Building Code, Section 9.36, for climate zones 6, 6A, 7 and 8.

Insulation

R-32 floor, R-24 walls and R-60 roof, with 2×6 exterior walls at 16" on centre.

Mechanical

HRV (heat recovery ventilator), electric forced-fan wall heaters or baseboard heaters with thermostats, and a 30, 40 or 60 imperial gallon water heater sized to the use.

Electrical

100 or 200 amp panel, AFCI breakers, interior LED pot lights and exterior LED lights.

Water and sewer

Optional self-contained water and sewer, with a 400, 600 or 800 gallon system.

Foundations

Engineered steel skids, adjustable jack stands, grade beams or piles, chosen for the site.

Warranty

1 year comprehensive, 2 years mechanical, 5 years envelope seal.
