- Area
- 600 sq ft
- Size
- 30' × 20'
Overview
Concessions: 30' × 20' and 42' × 18', with washrooms/change room. Meets or exceeds the CSA A277 standard and the National Building Code. Electric heat standard, optional solar capabilities.
From the brochure

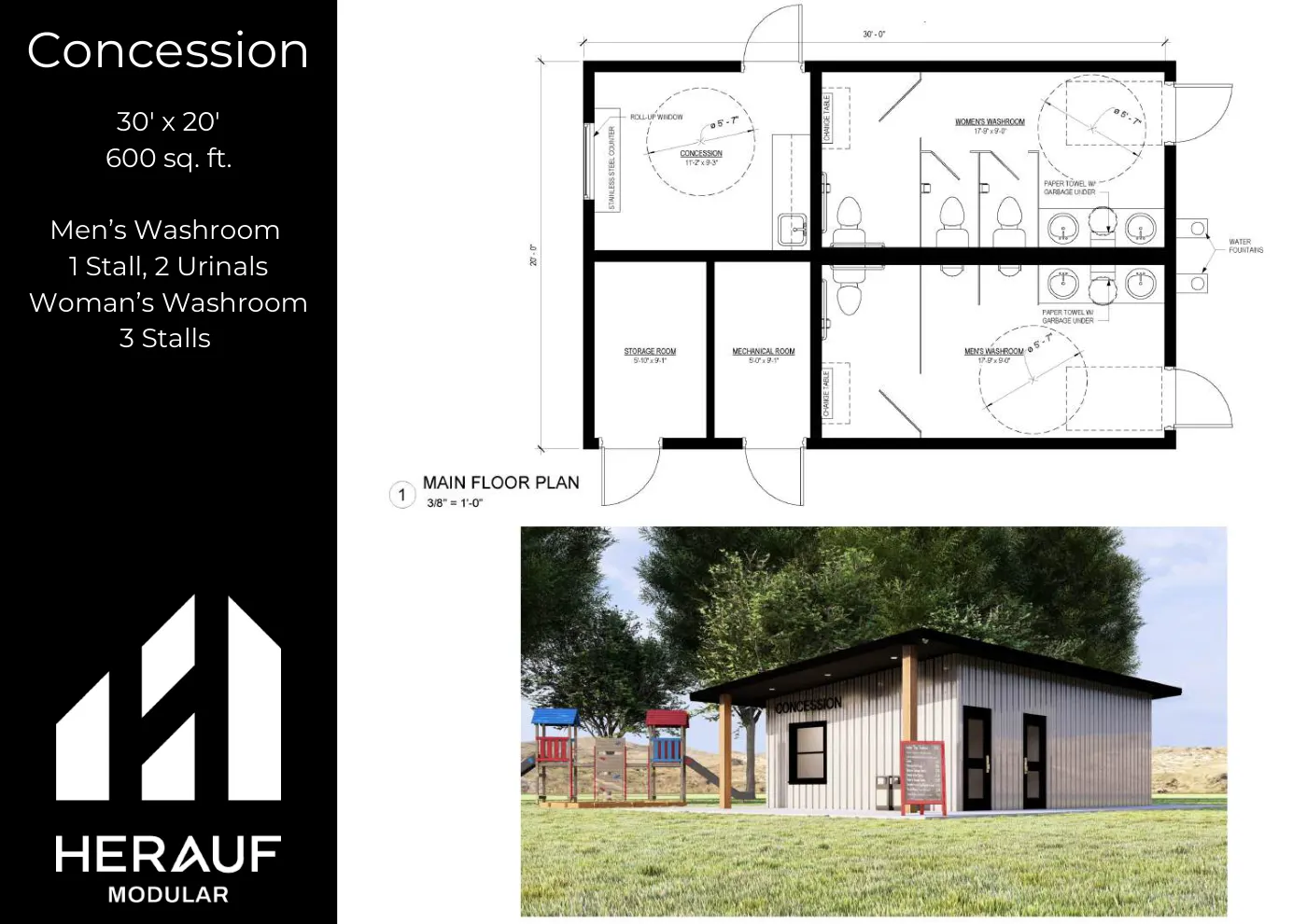

Commercial Brochure, page 10
- Concession
- 30' x 20'
- 600 sq. ft.
- Men’s Washroom
- 1 Stall, 2 Urinals
- Woman’s Washroom
- 3 Stalls

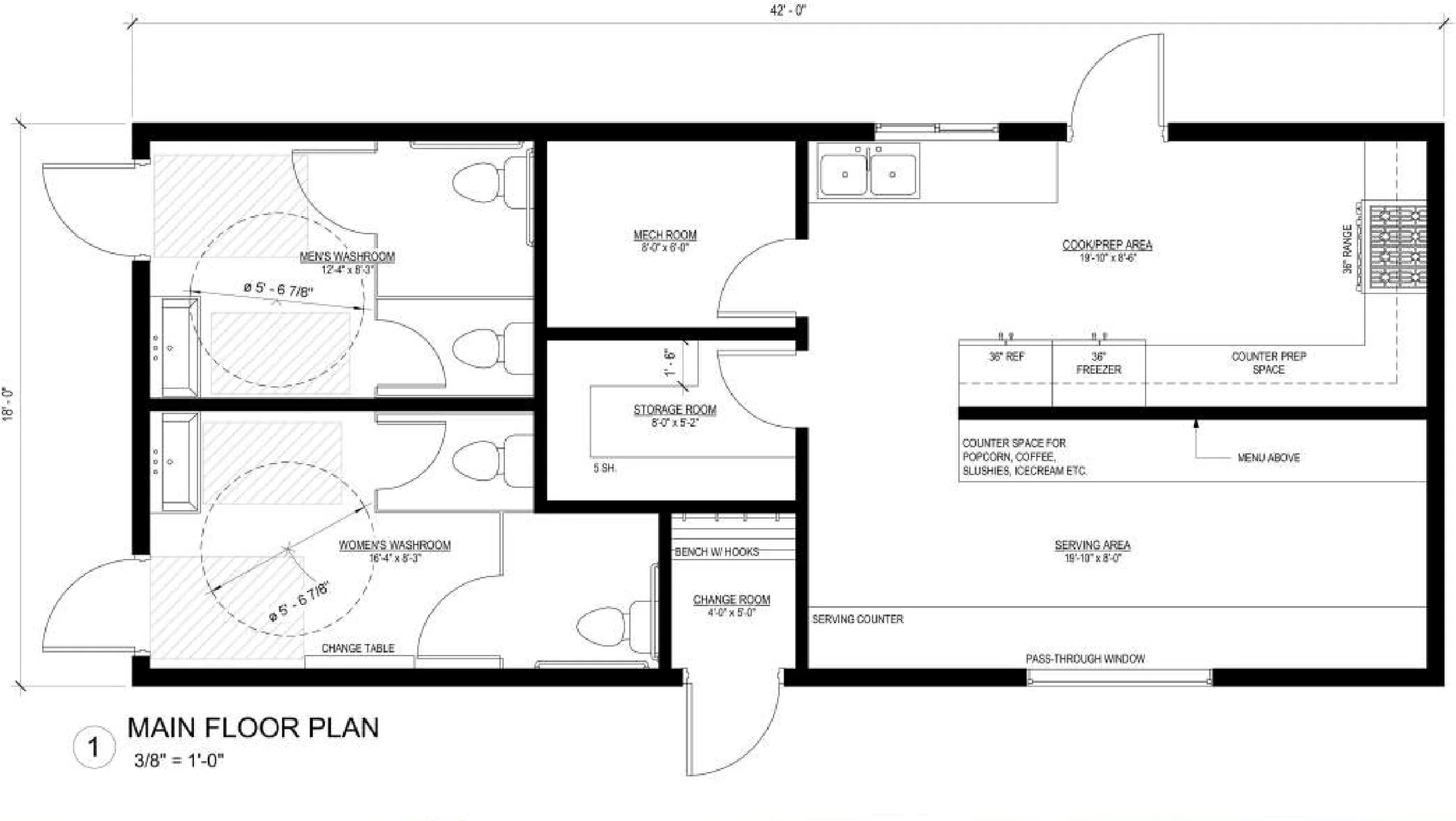

Commercial Brochure, page 11
- Concession
- 42' x 18'
- 756 sq. ft.
- Men’s Washroom
- 2 Stalls
- Woman’s Washroom
- 2 Stalls
- Barrier Free
- Change Room
- Length
- 30 ft
- Width
- 20 ft
- Area
- 600 sq ft
- Product line
- Commercial
- Building standard
- Built to meet or exceed CSA A277 and the National Building Code

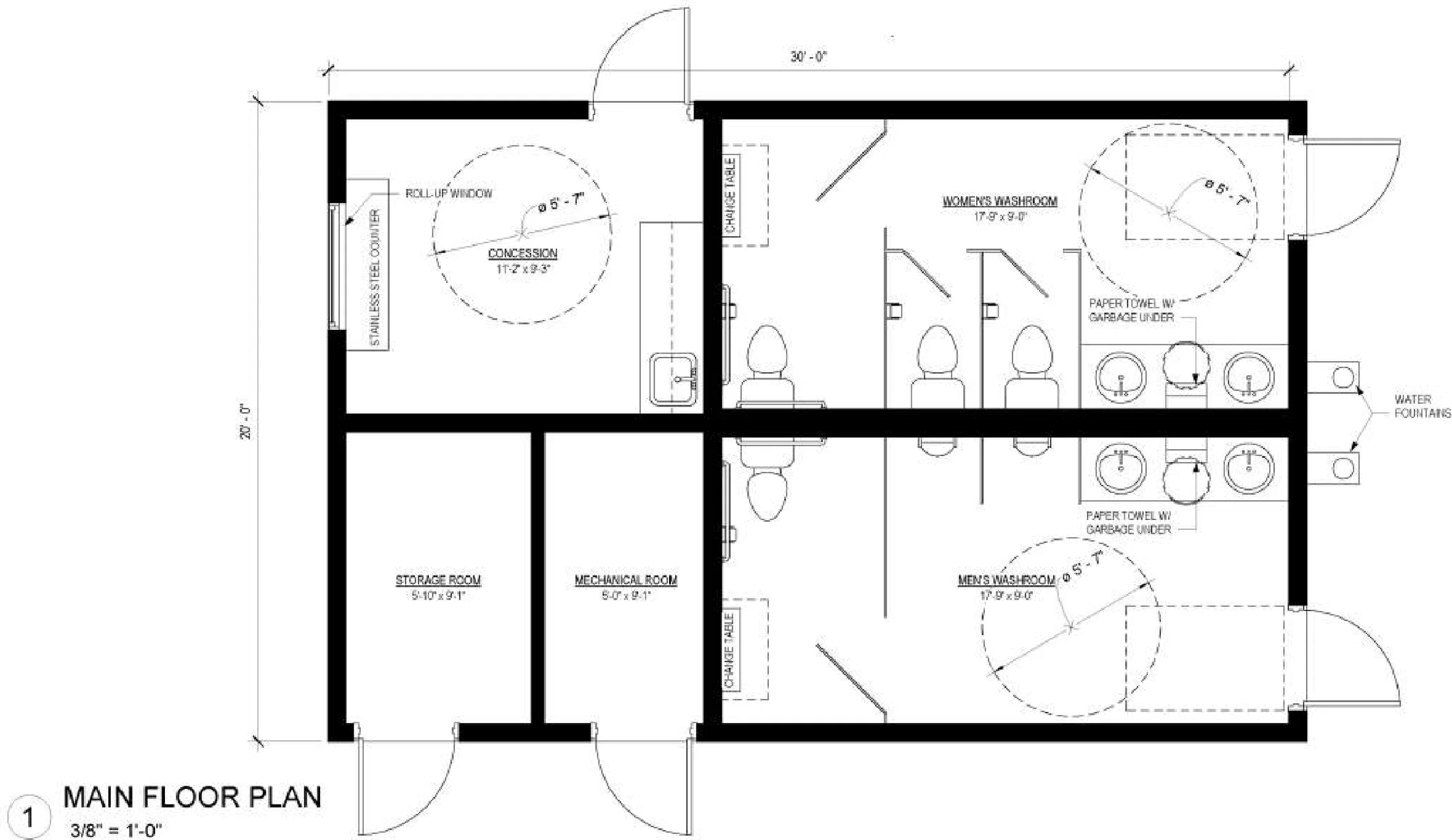

Floor plan
Page 10 of the Commercial Brochure. Dimensions and layouts as printed; ask us about customization.
What’s included
Brochure specifications
Commercial Brochure, page 26. As printed in the brochure.
Superior Construction
- 1/2” plywood - under floor structure
- Under floor structure metal cap
- Engineered 2 x 4 roof trusses @ 24” OC
- 2”x 4” Interior walls @ 24”OC
- 2”x 6” exterior walls @ 16” OC
- 2” x 10” floor Joists @16” OC
- 3/4’’ tongue & groove subfloor
- 7/16” wall & roof sheathing
- Rafter hurricane ties
- Insulation R - Value Floor R-32
- Insulation R - Value Walls R-24
- Insulation R - Value Roof R-60
- 6ml vapour barrier (CGSB)
Mechanical & Plumbing
- 30, 40 or 60 imperial gal water heater (pending use requirements)
- Natural gas on demand water heater (optional)
- Motion sensor / light controlled exhaust fans
- HRV (Heat Recovery Ventilator) supply & exhaust system (optional)
- 1 piece 4’ shower c/w glass sliding doors (shower units only)
- 4” or 8” center set vanity sink
- ADA compliant vanity faucets
- Low Flow Toilet
- Washroom Accessible grab bars (optional)
- 5lb ABC fire extinguisher
- Self containment System 400, 600 , 800 Gallon (optional)
Electrical
- 100 or 200 Amp Electrical Panel (Standard)
- Electric forced fan wall heaters, baseboard heaters & thermostats
- 2 Exterior GFI receptacles
- 1.5’’ Conduit Raceway to electrical panel for future electrical service
- GFI protected receptacles in washroom
- AFCI circuit breakers
- 1 heat trace receptacle
- Smoke/Carbon Monoxide alarms
- Interior LED pot lights
- Exterior LED lights
- Solar Rough-in (optional)
- Exit door and battery back up exit lights
Maintenance Free Exteriors
- Vinyl Siding (Metal siding optional)
- Tyvek House wrap
- Pre-finished 12” soffit
- Pre-finished 6” fascia
- 36”-18 gauge primed steel insulated ext. door, expandable jamb, aluminium sill & commercial grade weatherstripping.
- 5’’ Eavestrough & downspouts
- Architectural Asphalt Shingles (Metal standing seam roof optional)
Interior Decor
- Custom floating vanity cabinets, laminate countertop and Hardware
- Commercial LVP Flooring
- Accessible compliant vanity, mirror, towel bars & toilet paper holders
- 4” rubber base
- PVC wall & ceiling panels and trims (Washrooms)
- Commercial grade door hardware, locks & passage
Warranty & Certifications
- 1 Year comprehensive
- 2 Year Mechanical
- 5 Year Envelope Seal
- Minimal site disruption
- Fast delivery timeline
- Meets or exceeds CSA A277
- Electric heat
- Optional solar
