Overview
Ten-Plex: 18' × 50', accessible main-floor suite options. Meets or exceeds the CSA A277 standard and the National Building Code. Scalable for apartment complexes, townhouses, and urban infill sites.
From the brochure

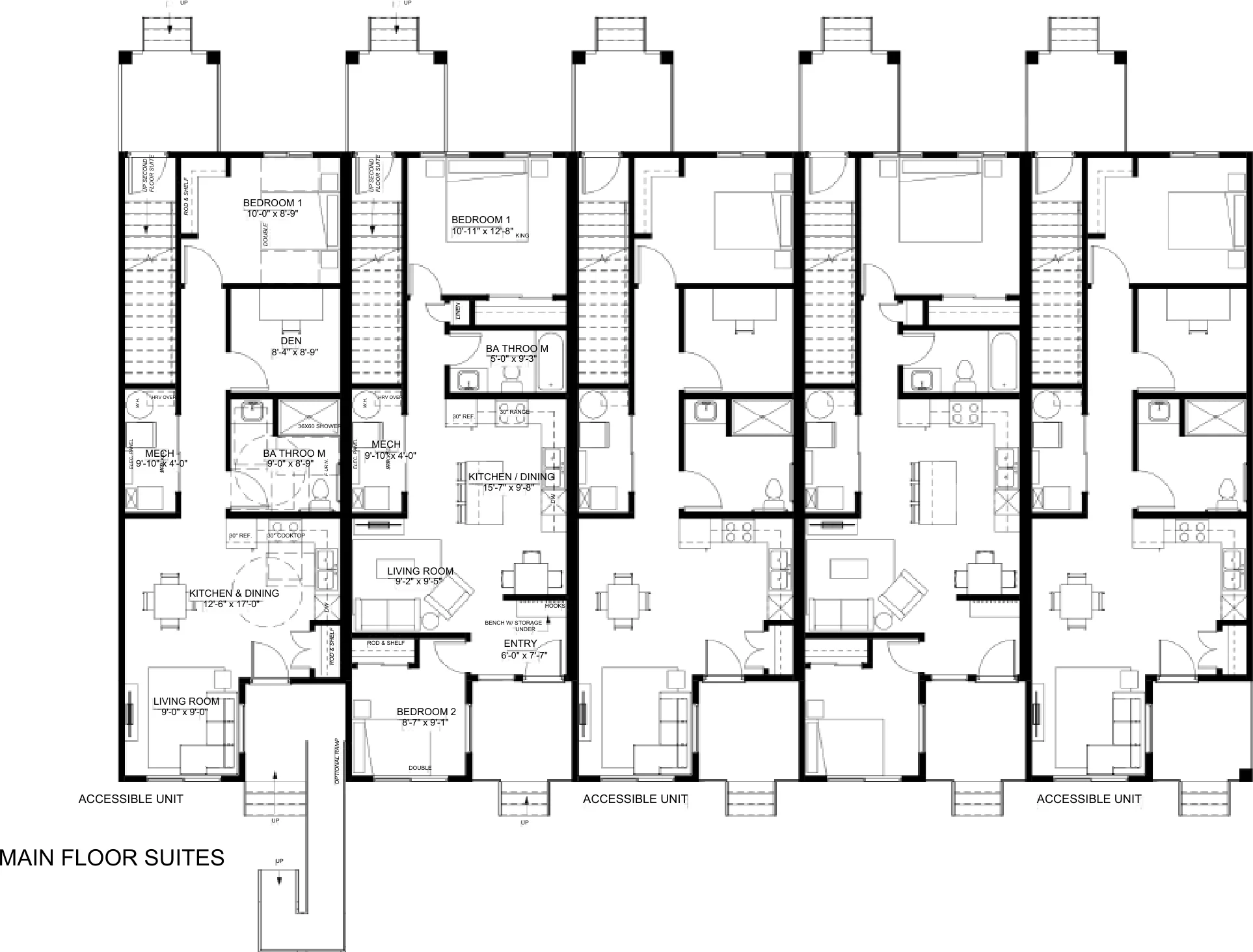

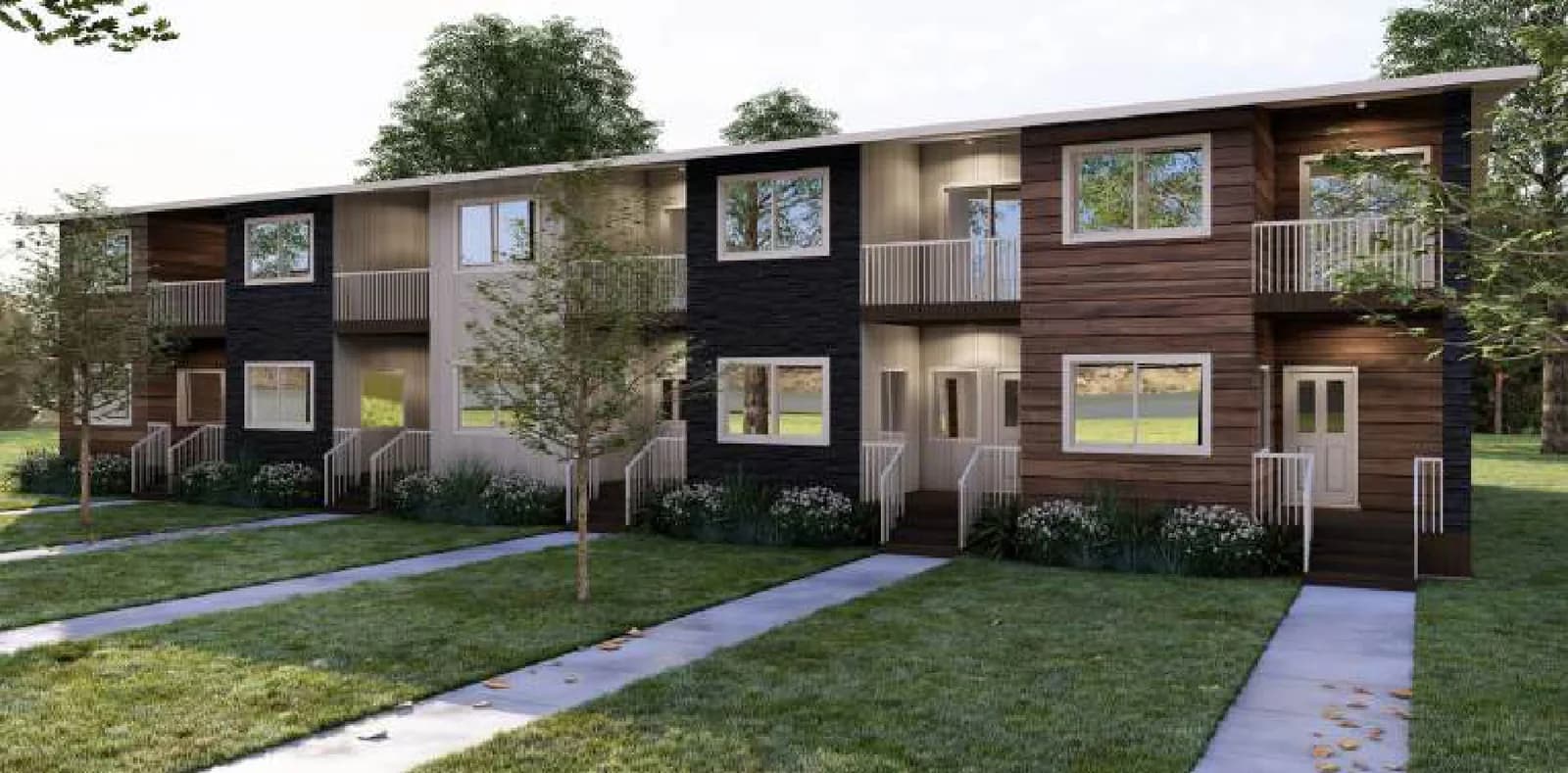

Multi-Family Brochure, page 12
- 10-Plex
- 18' x 50'
- Main Floor Suites
- 2 Bedroom
- 1 Bathroom
- Accessible Options w/
- Den & Bedroom
- Open Concept

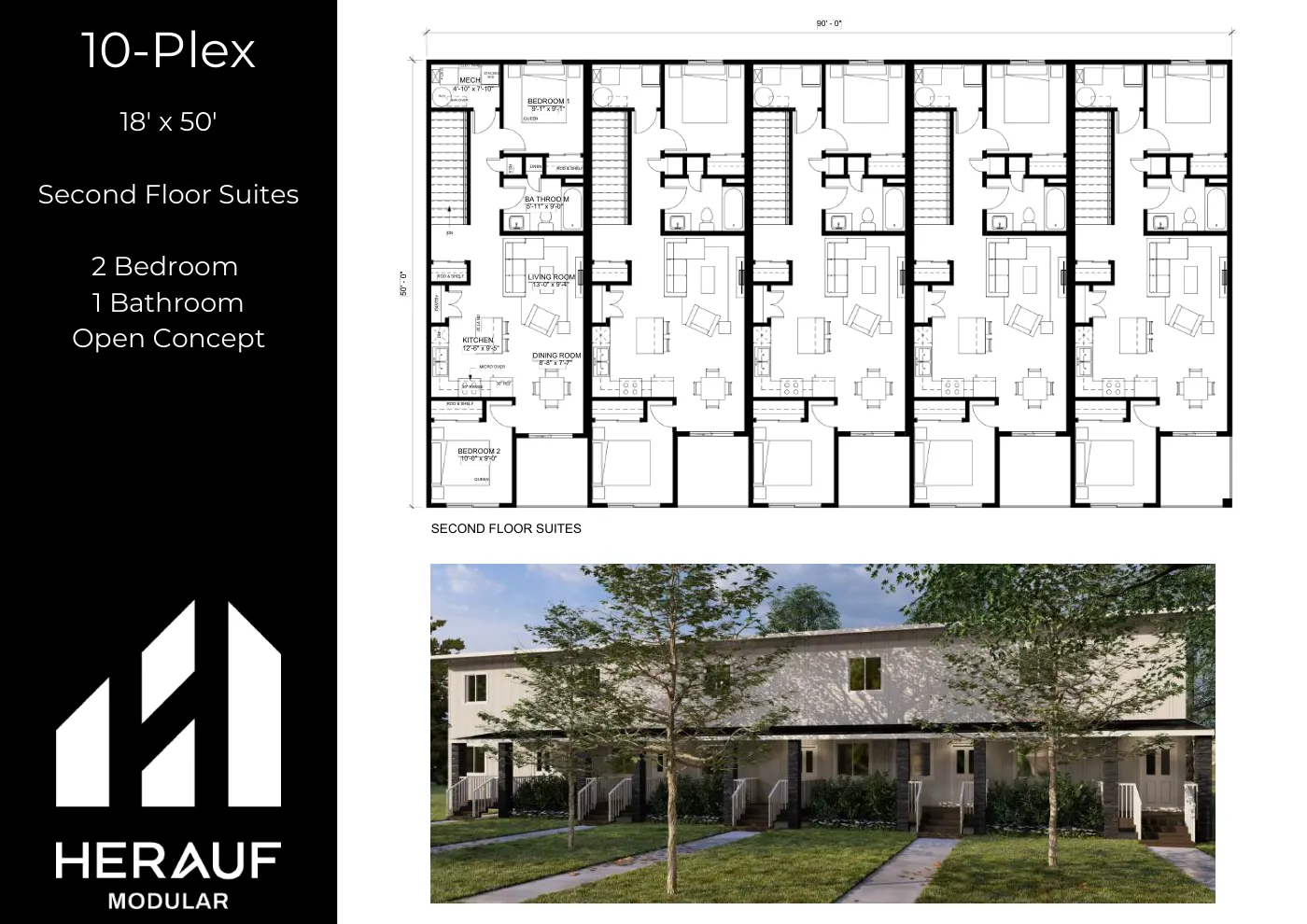

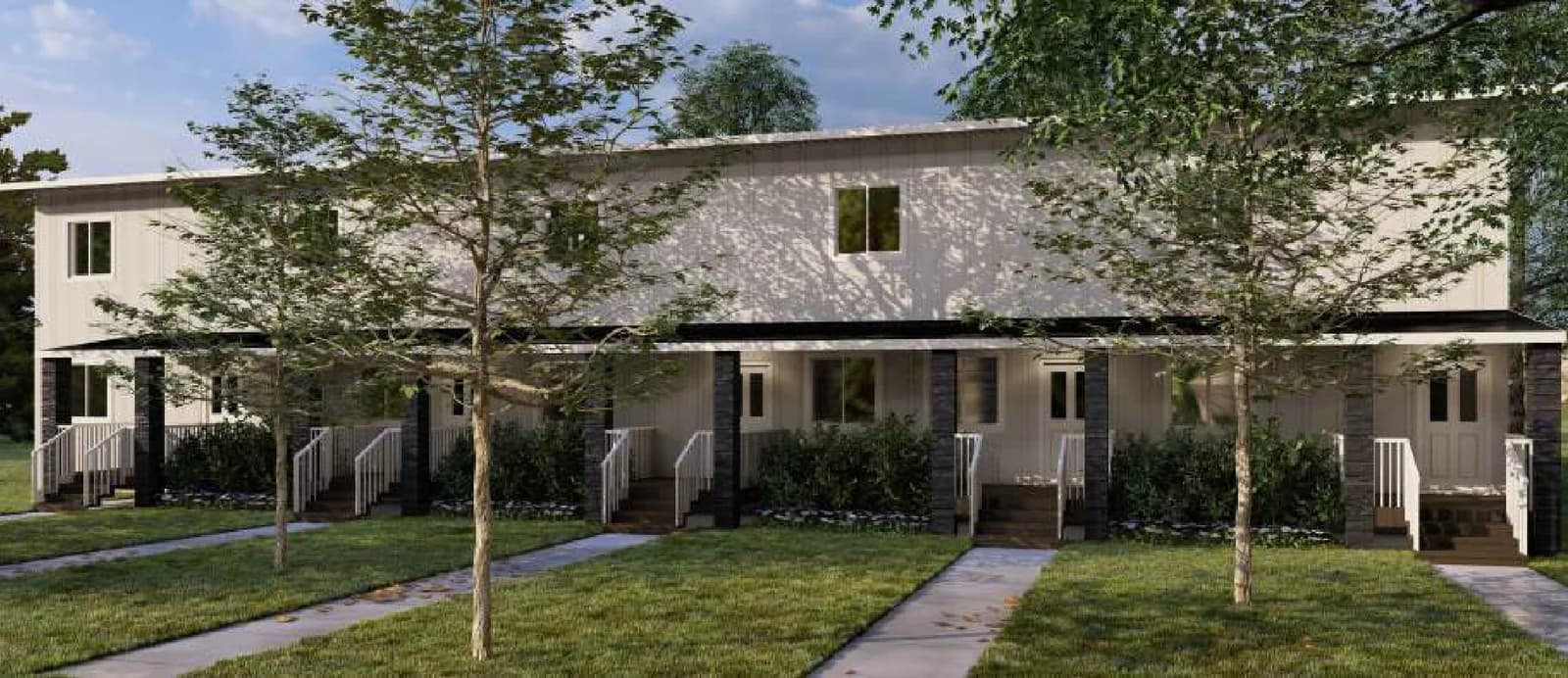

Multi-Family Brochure, page 13
- 10-Plex
- 18' x 50'
- Second Floor Suites
- 2 Bedroom
- 1 Bathroom
- Open Concept
- Product line
- Multi Family & Infill
- Building standard
- Built to meet or exceed CSA A277 and the National Building Code

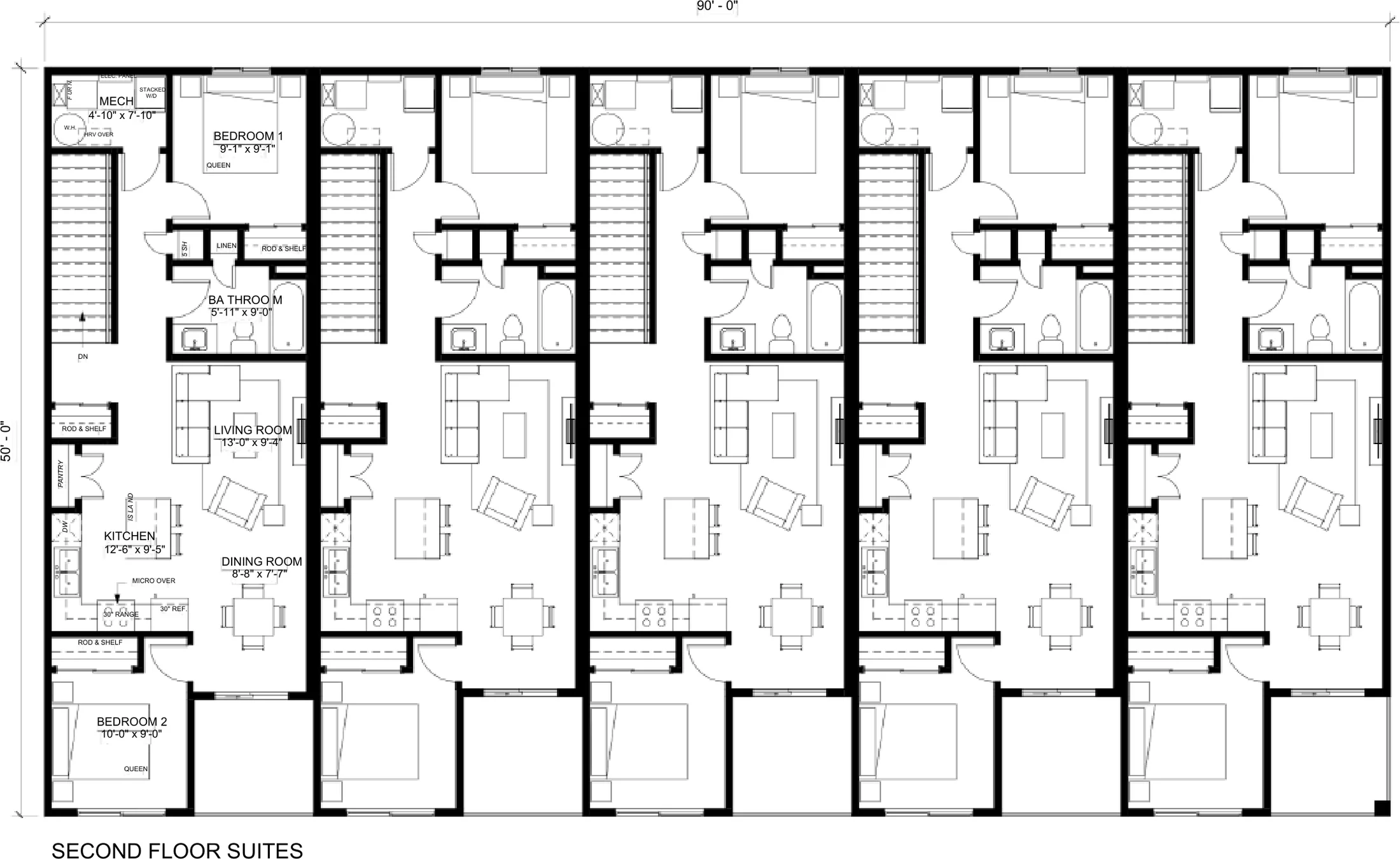

Floor plan
Page 13 of the Multi-Family Brochure. Dimensions and layouts as printed; ask us about customization.
What’s included
Brochure specifications
Multi-Family Brochure, page 20. As printed in the brochure.
Superior Construction
- 1/2” plywood underbelly
- Underbelly metal floor cap
- Engineered roof trusses @ 24” OC • 2”x 4” Interior walls @ 24”OC
- 2”x 6” exterior walls @ 16” OC
- 2” x 10” floor Joists @16” OC
- 3/4’’ tongue & groove subfloor
- 7/16” wall & roof sheathing
- Insulation R - Value Floor R-32
- Insulation R - Value Walls R-24
- Insulation R - Value Roof R-60
- 6ml vapour barrier (CGSB)
Mechanical & Plumbing
- 30 or 40 Imperial gallon electric water heater (pending size of unit)
- Electric ductless A/C or natural gas forced air furnace (either one is optional)
- HRV (Heat Recovery Ventilator) & exhaust system
- Moen single-lever faucets c/w pressure-balanced shower valve
- 1-piece tub/shower c/w curved rod (optional) 1 piece 4’ shower c/w glass sliding doors
- Low-flow toilet
- Dishwasher hookup
- Washer and Dryer Hookup
Electrical
- 100 Amp Electrical Panel (Standard) Electric fan forced wall heaters
- 2Exterior GFI receptacles
- 1.5’’ Conduit Raceway to electrical panel for future electrical service
- GFCI-protected receptacles in bathroom
- GFCI-protected receptacles in kitchen
- AFCI-protected receptacle
- 1 Heat trace receptacle
- Smoke/Carbon Monoxide alarms Interior LED pot lights
- Exterior LED lights
Maintenance Free Exteriors
- Vinyl Siding (metal siding optional)
- Tyvek House wrap
- Pre-finished 12” Eaves
- Pre-finished 6” fascia
- 36” steel insulated ext. door c/w PVC jamb - Standard White
- 5’’ Eavestrough
- Architectural Asphalt Shingles (metal standing seam roof optional)
- PVC Triple Pane (low E) c/w venting sliders & PVC jambs - Standard White
Interior Decor
- Custom Cabinets
- Superior Vinyl Plank Flooring
- Bathroom vanity & mirror
- Weiser brushed nickel door hardware
- Berkley Contemporary interior doors
- Interior & Exterior client selections
Warranty & Certifications
- 1 Year comprehensive
- 2 Year Mechanical
- 5 Year Envelope Seal
- Apartment complexes
- Townhouse configurations
- Urban infill ready
- Fast delivery
- Meets or exceeds CSA A277
Similar models
All Multi Family & Infill models
Brochure page
Multi Family & InfillTwelve-Plex18' × 40', accessible main-floor suite options
Brochure page
Multi Family & InfillModular Complex116' × 85', 8 suites plus cafeteria, recreation and reception; suited to senior living and youth transition housing
Brochure page
Multi Family & InfillDuplex50' × 18'
Make the Ten-Plex yours.
Custom builds typically deliver in roughly 16 weeks. Tell us about your site and we’ll prepare a quote, free.
Common questions about the Ten-Plex
How much does the Ten-Plex cost?
There's no fixed list price: cost depends on your finish level, site and foundation, and delivery distance. Herauf provides a free, no-obligation written quote for the Ten-Plex tailored to your project, usually within one business day.
How long does the Ten-Plex take to build and deliver?
Most Herauf builds are manufactured and delivered in roughly 16 weeks. The Ten-Plex is built indoors to meet or exceed CSA A277 while your site work happens in parallel, so weather never stalls the schedule.
Can the Ten-Plex be customized?
Yes. Exterior colours, cladding, and interior finishes can be tailored, and our team walks you through options when you request a quote. The floor plan and structure follow the published Multi-Family & Infill specification.
