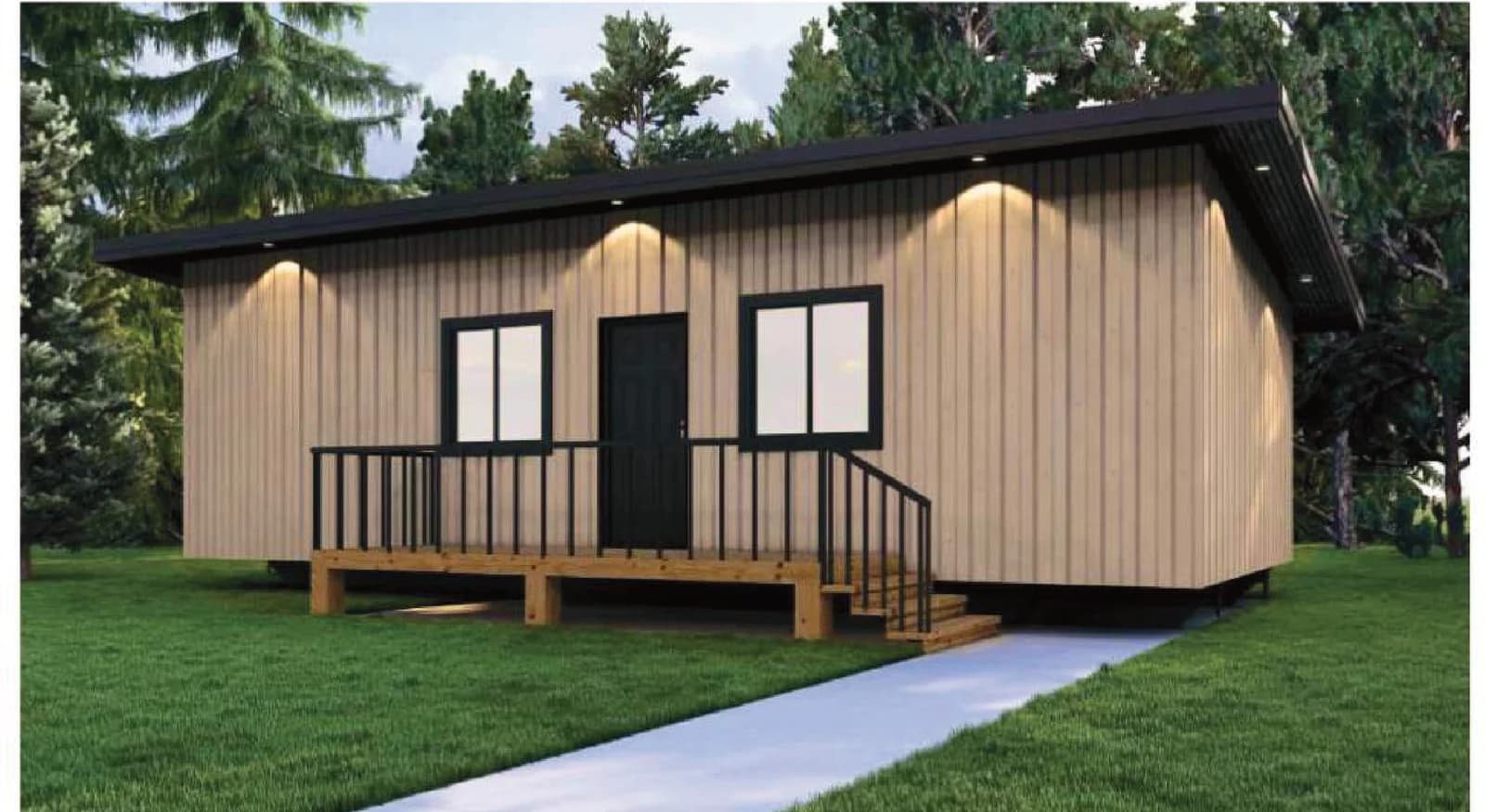

The Prairie, exterior 1, brochure page 9
The Prairie exterior, architectural rendering
The Prairie, floor plan 1, brochure page 9
Illustrative plan. The brochure sheet has the dimensioned drawing.

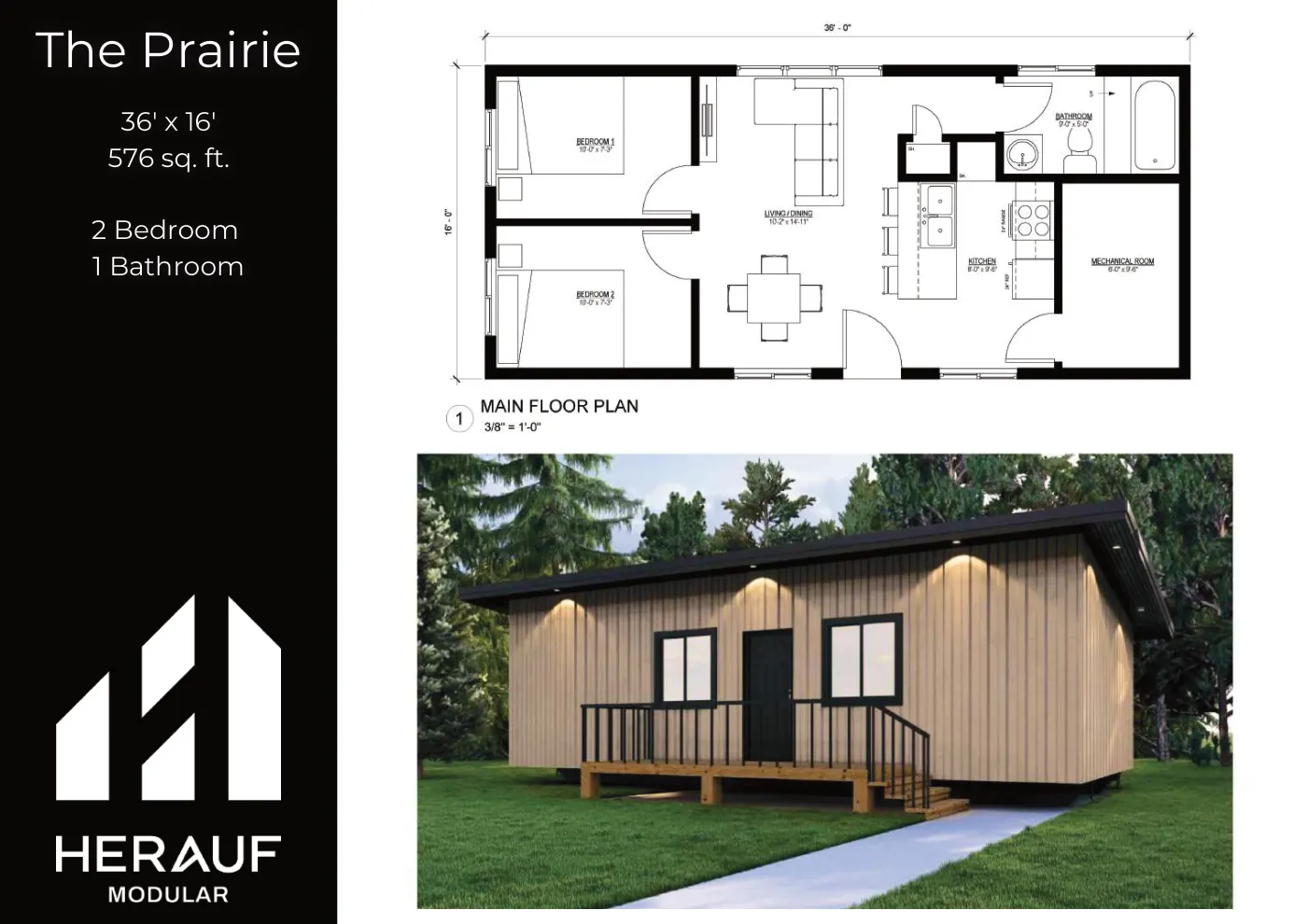

The Prairie, page 9 of the Residential Brochure
Picture 1 of 5
Residential

The Prairie

From $150,000

Home only, built at our plant. Not included: foundation, delivery and crane set, site work and utility connections, permits, and GST/PST. These depend on your site and are priced in your written budget estimate. Prices as of October 2026, for contracts signed by December 31, 2026; subject to change after.

Area
576 sq ft (54 m²)
Bedrooms
2
Bathrooms
1
Size
36' × 16'

Overview

The Prairie: 36' × 16' · 576 sq ft, 2 bed · 1 bath. Every unit meets or exceeds CSA A277 and the National Building Code, and our residential models are independently energy-modelled (Hot2000) for Climate Zones 6 through 8. Electric heat comes standard, solar is optional, and manufacturing takes as little as 16 weeks after drawing sign-off, permit and engineering approval.

From the brochure

Residential Brochure, page 9

  • The Prairie
  • 36' x 16'
  • 576 sq. ft.
  • 2 Bedroom
  • 1 Bathroom
Length
36 ft
Width
16 ft
Area
576 sq ft (54 m²)
Layout
2 bed · 1 bath
Product line
Residential
Building standard
Built to meet or exceed CSA A277 and the National Building Code

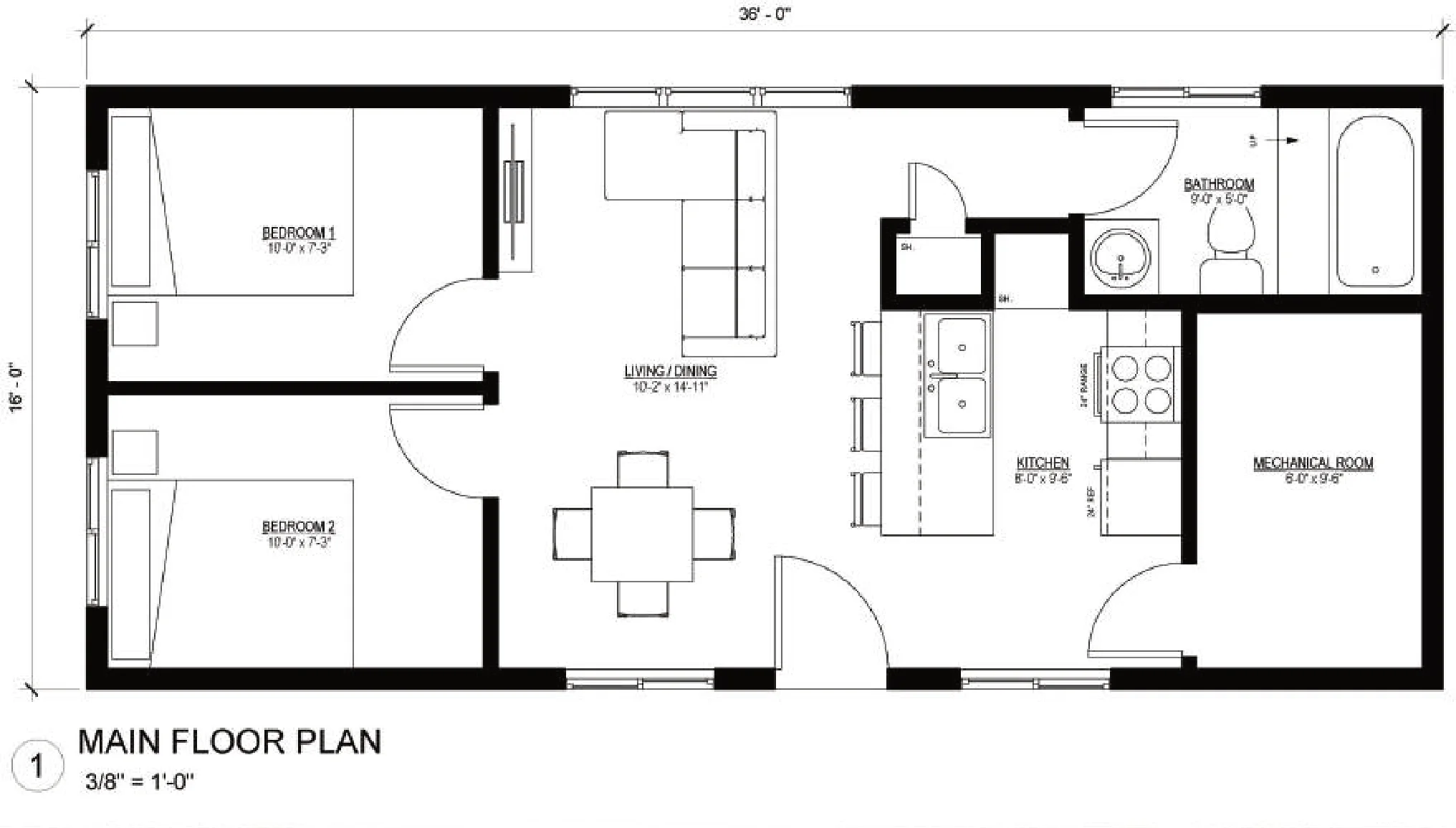

Floor plan

The Prairie, floor plan 1, brochure page 9

Page 9 of the Residential Brochure. Dimensions and layouts as printed; ask us about customization.

What’s included

Brochure specifications

Residential Brochure, page 23. As printed in the brochure.

Superior Construction

  • 1/2” plywood - under floor structure
  • Under floor structure metal cap
  • Engineered 2 x 4 roof trusses @ 24” OC
  • 2”x 4” Interior walls @ 24”OC
  • 2”x 6” exterior walls @ 16” OC
  • 2” x 10” floor Joists @16” OC
  • 3/4’’ tongue & groove subfloor
  • 7/16” wall & roof sheathing
  • Rafter hurricane ties
  • Insulation R - Value Floor R-32
  • Insulation R - Value Walls R-24
  • Insulation R - Value Roof R-60
  • 6ml vapour barrier (CGSB)

Mechanical & Plumbing

  • 30 or 40 Imperial gallon electric water heater (pending size of unit)
  • Natural gas on demand water heater (optional)
  • Electric ductless A/C (optional)
  • Natural gas forced air furnace (optional)
  • Central A/C & evaporator coil (optional)
  • Wood Stove (optional)
  • HRV (Heat Recovery Ventilator) supply & exhaust system
  • Double compartment stainless steel kitchen sink
  • Center set vanity sink
  • Moen single lever faucets c/w pressure balanced shower valve
  • 1 piece tub/shower c/w curved rod (optional)
  • 1 piece 4’ shower c/w glass sliding doors
  • Low Flow toilet
  • Dishwasher hookup
  • Washer and Dryer Hookup

Electrical

  • 100 Amp Electrical Panel (Standard)
  • Electric forced fan wall heaters, baseboard heaters & thermostats
  • 2 Exterior GFI receptacles
  • 1.5’’ Conduit Raceway to electrical panel for future electrical service
  • GFCI protected receptacles in bathroom
  • GFCI protected receptacles in kitchen
  • AFCI circuit breakers
  • 1 heat trace receptacle
  • Smoke/Carbon Monoxide alarms
  • Interior LED pot lights
  • Exterior LED lights
  • Solar Rough-in (optional)

Maintenance Free Exteriors

  • Vinyl Siding ( Metal siding - optional)
  • Tyvek House wrap
  • Pre-finished 12” soffit
  • Pre-finished 6” Fascia
  • 36” residential steel insulated ext. door c/w PVC jamb, aluminium sill & kerf weatherstripping - Standard White
  • 5’’ Eavestrough & downspouts
  • Architectural Asphalt Shingles (Metal standing seam roof optional)
  • PVC Triple Pane (low E) c/w venting sliders & PVC jambs - Standard White

Interior Decor

  • Custom kitchen, vanity cabinets, laminate countertop and Hardware
  • Superior Vinyl Plank Flooring
  • Bathroom vanity, mirror, towel bars & toilet paper holders
  • 30” Berkley Contemporary interior doors
  • MDF casings & baseboards
  • Residential grade door hardware, locks & passage sets
  • Interior & Exterior client selections

Warranty & Certifications

  • 1 Year comprehensive
  • 2 Year Mechanical
  • 5 Year Envelope Seal
  • 14ft, 16ft, 18ft, 28ft widths
  • Made in as little as 16 weeks after approvals
  • Meets or exceeds CSA A277
  • Electric heat included
  • Optional solar capabilities

Make the Prairie yours.

Custom builds are manufactured in as little as 16 weeks once drawings, permit and engineering approval are in. Tell us about your site and we’ll prepare a budget estimate.

Submit an inquiry

  • 5.0 on Google (as of September 2026)
  • BBB A+
  • Meets or exceeds CSA A277
Add a note about the project (optional)

A reply within one business day. No obligation.

We use your details to reply about your project, and may follow up about it by email for up to 6 months. Unsubscribe any time. See our Privacy Policy.

St. Theresa Point Housing, St. Theresa Point, Manitoba

Delivered in the Residential line

St. Theresa Point Housing

St. Theresa Point, Manitoba

Homes built off-season and delivered ~1,300 km north over winter ice roads to a fly-in community reachable by ground only when the ice roads form.

See it built, homes delivered over ice roads to St. Theresa Point

Planning more than one home?

Add The Prairie to a development schedule, set the quantity and include other home models and delivery phases in the same brief.

Add this model to a development

Common questions about The Prairie

How much does The Prairie cost?

The Prairie is priced from $150,000. Home only, built at our plant. Not included: foundation, delivery and crane set, site work and utility connections, permits, and GST/PST. These depend on your site and are priced in your written budget estimate. Prices as of October 2026, for contracts signed by December 31, 2026; subject to change after. Finish upgrades are priced in the same budget estimate.

How big is The Prairie?

The Prairie is 36' × 16' · 576 sq ft, configured as 2 bed · 1 bath.

How long does The Prairie take to build and deliver?

Manufacturing takes as little as 16 weeks once the issued-for-construction package is signed off and permit and engineering approval are in. The Prairie is built indoors to meet or exceed CSA A277 while your site work happens in parallel, so weather never stalls the schedule.

Can The Prairie be customized?

Yes. Exterior colours, cladding, and interior finishes can be tailored, and our team walks you through options when you request a budget. The floor plan and structure follow the published Residential specification.
